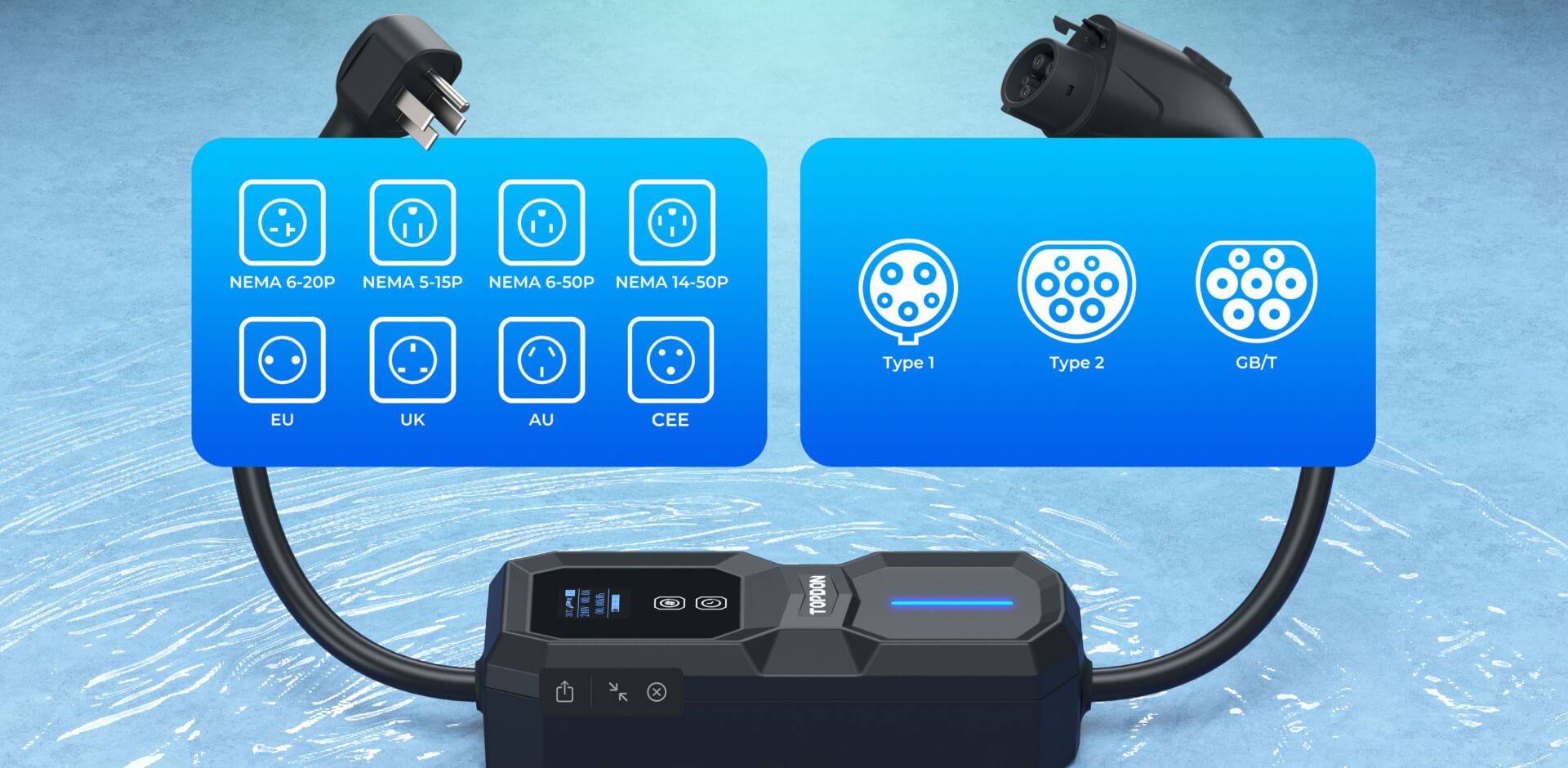

Unmatched Versatility

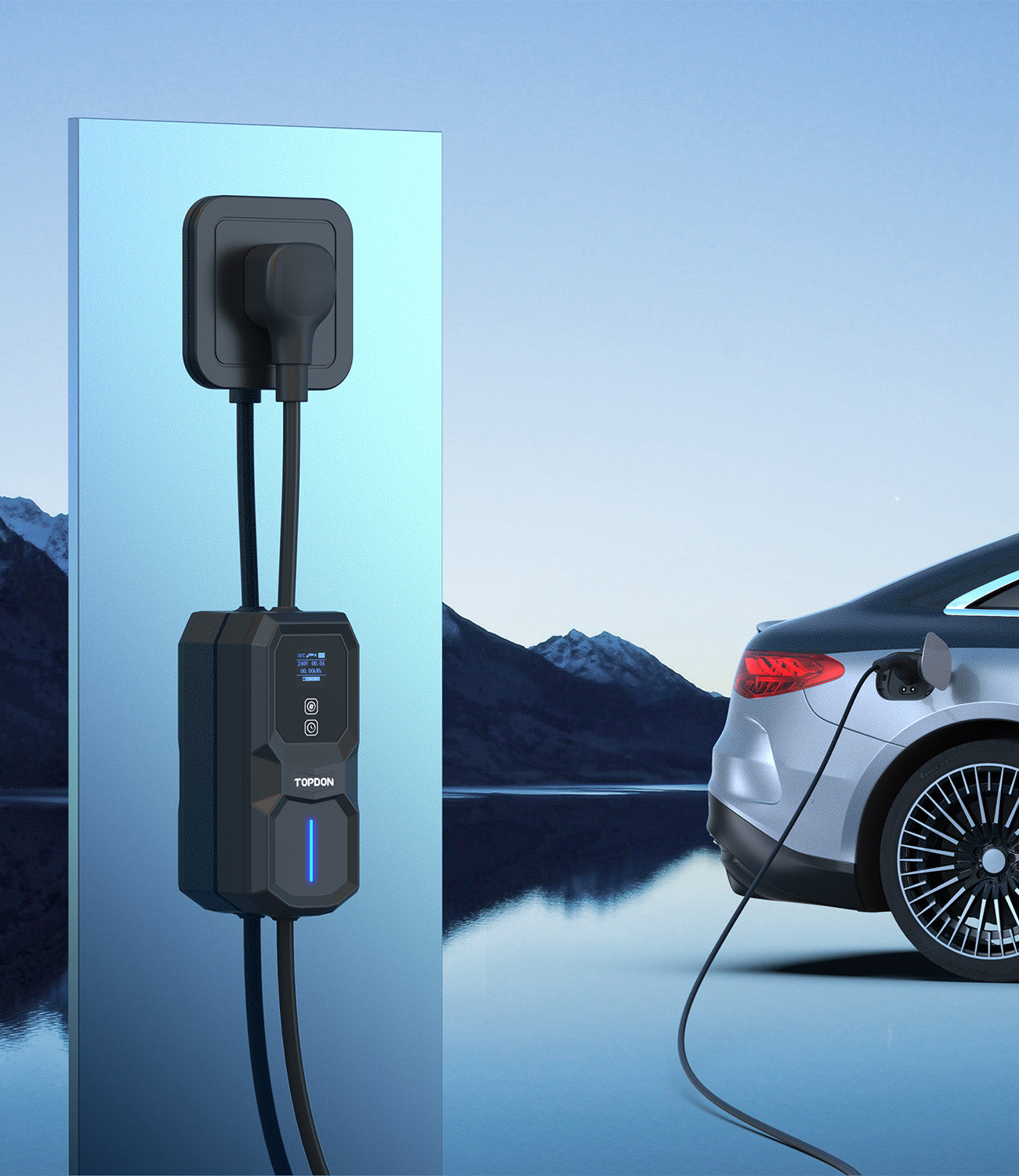

Charge your electric vehicle anywhere, anytime with the PulseQ AC Portable. Its comprehensive range of connectors and plugs caters to various regions, including the US and Europe, making it your ultimate charging companion on the road.

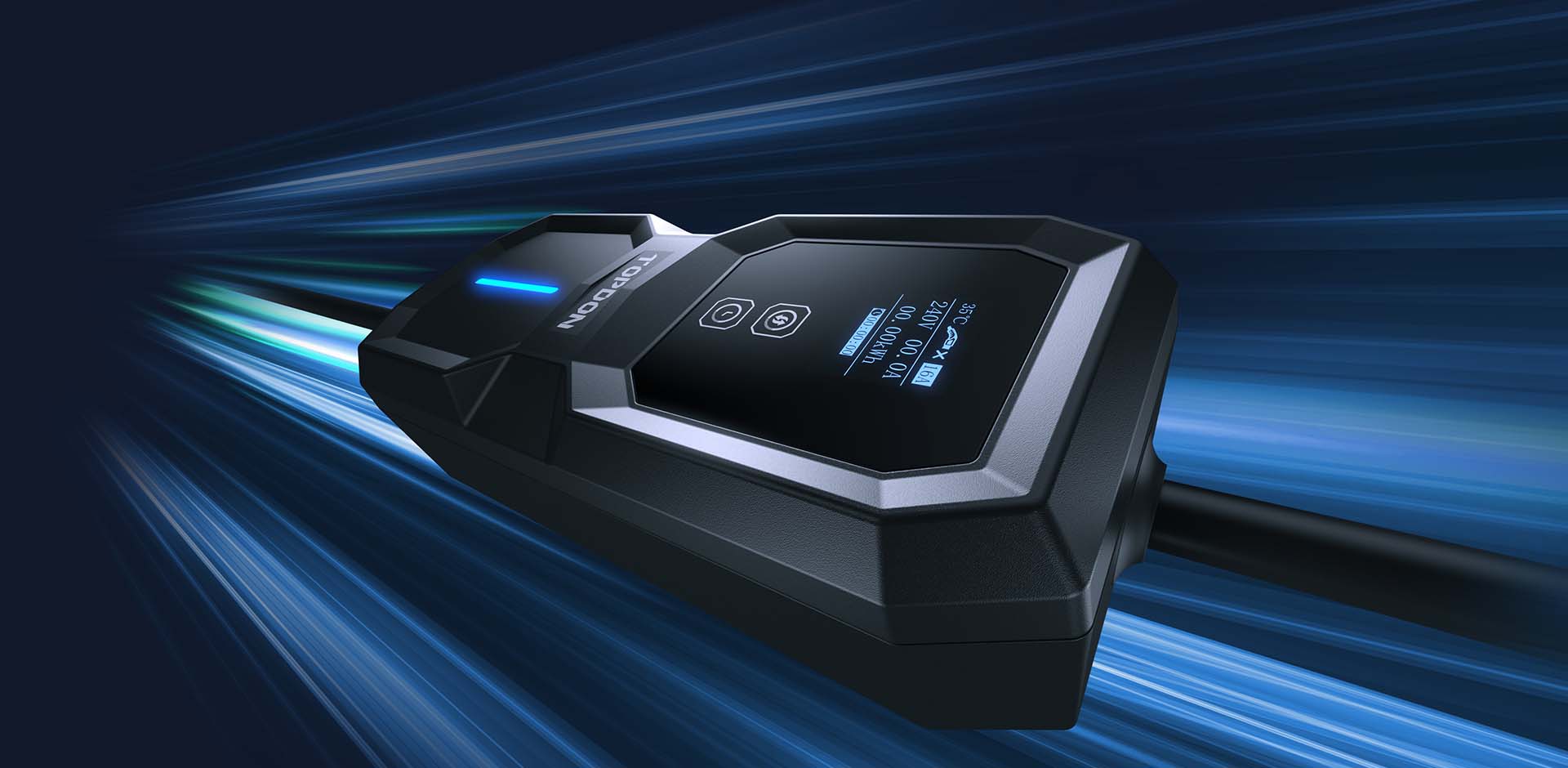

Lightning-Fast Charging
Experience seamless power-up moments with advanced voltage, current, and temperature detection modules. Connect the PulseQ AC Portable to your electric vehicle, and watch it come to life, delivering lightning-fast charging for all your adventures.

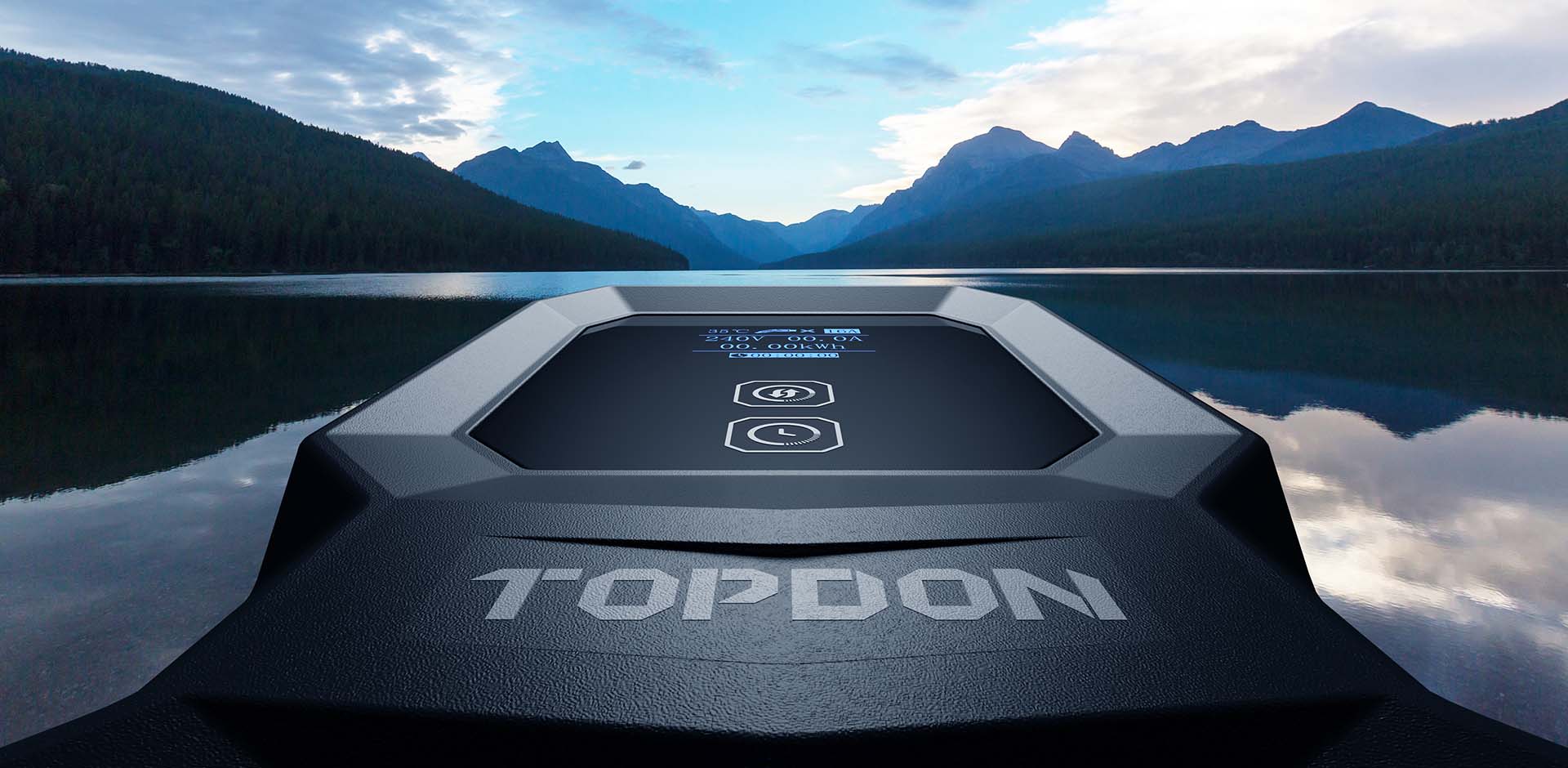

Real-Time Insights
Stay informed at every moment with the user-friendly LCD display. Track your charging status and access real-time information effortlessly, keeping you in the driver's seat of your electric vehicle's power.
Plug & Charge or Use The Scheduling Feature
Enjoy the flexibility of two charging modes. Whether you need an instant power-up with the “Plug & Power” mode or prefer to schedule charging with the “Smart Schedule” feature, the PulseQ AC Portable adapts to your lifestyle.

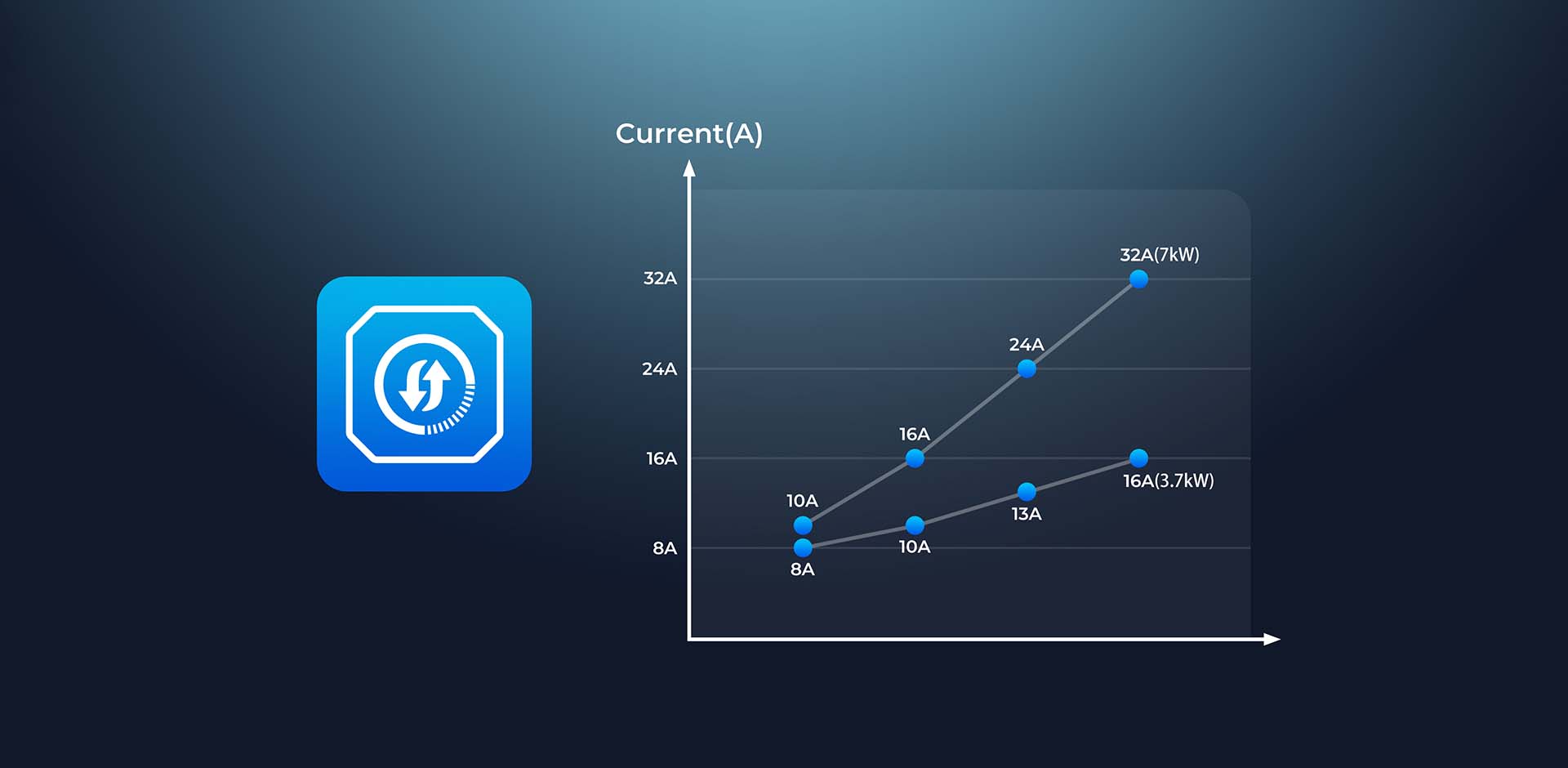

Customizable Charging Current
Tailor your charging to exactly what you need. The PulseQ AC Portable lets you set the charging current according to your preferences and power needs, ensuring optimal charging for your electric vehicle.

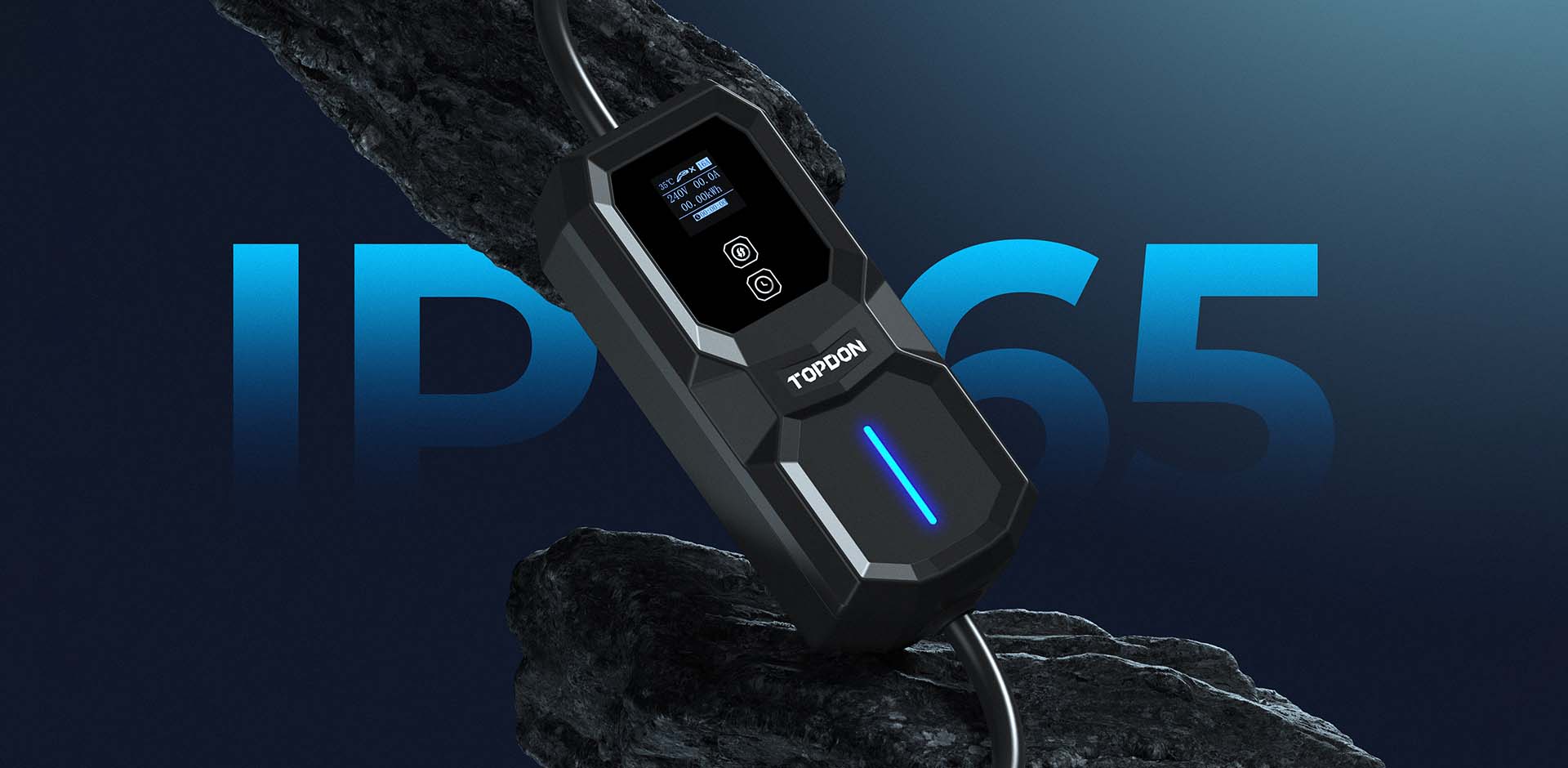

Built to Last
Engineered for durability, TOPDON products boast impressive IP and IK ratings, such as the NEMA Type 4 for the US version and IP65 for the European version. With the PulseQ AC Portable, you can charge confidently, knowing it's built to withstand the test of time.

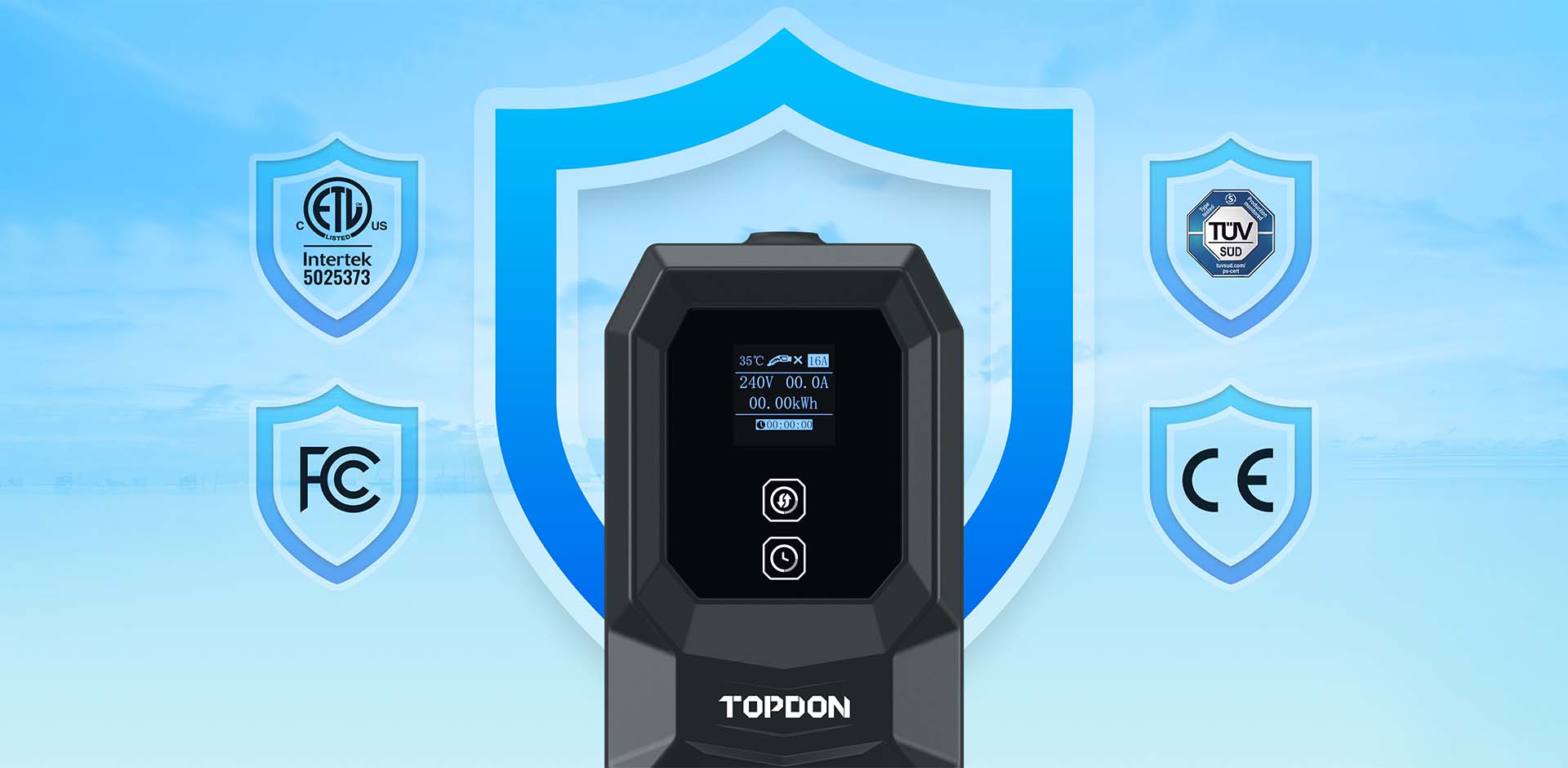

Safety First
Safety is our priority.
Our products are rigorously tested and certified to meet the safety standards of various regions, including ETL and FCC guidelines for the US version and TUV and CE for the European version. The PulseQ AC Portable is equipped with a range of protective features, from over/under voltage and frequency protection to overcurrent and temperature protection, ensuring a secure and worry-free charging experience. It even comes with current leakage protection and grounding protection for added peace of mind.

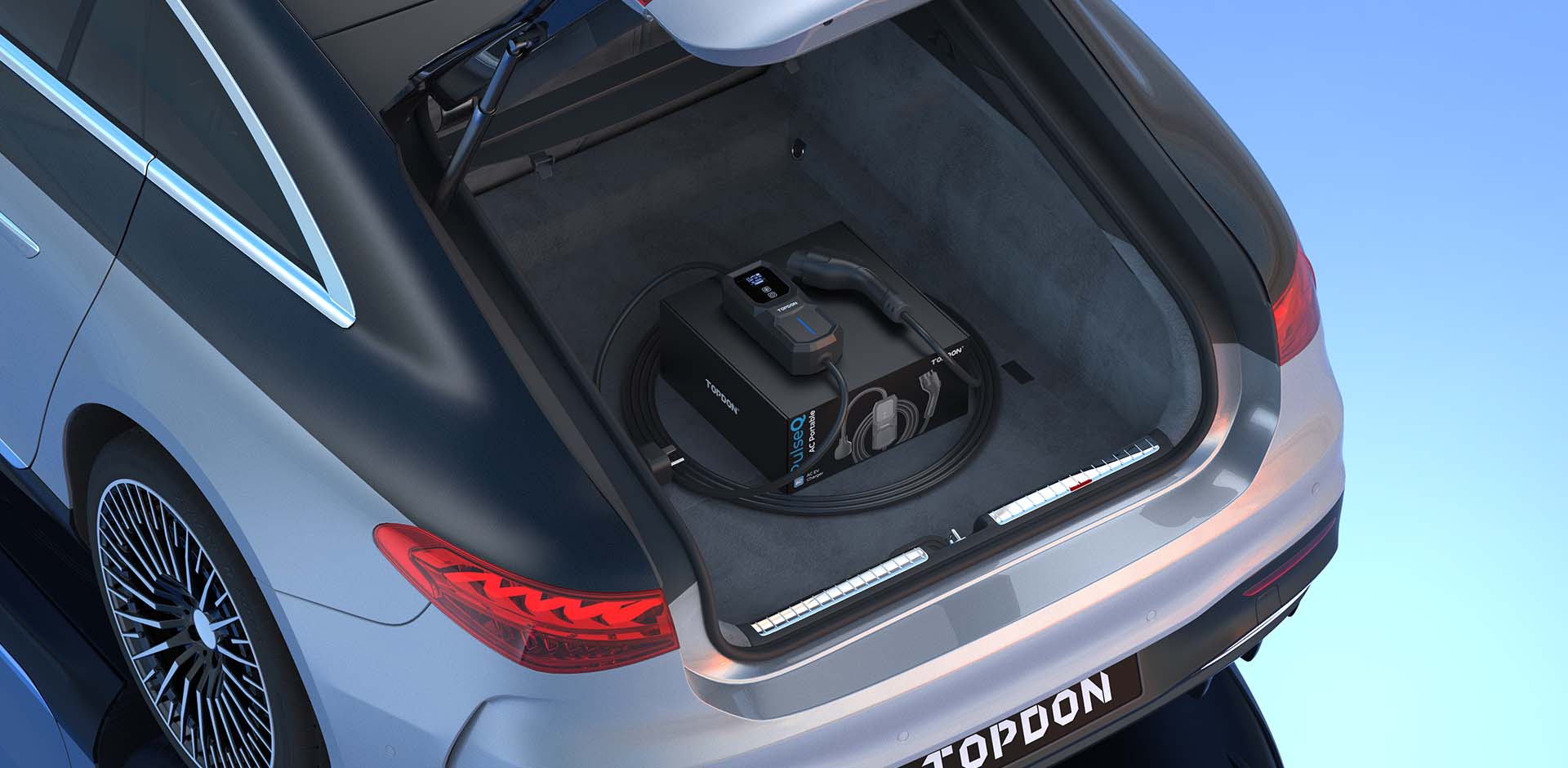

Unleash Your Wanderlust
From urban streets to rugged terrains, the PulseQ AC Portable is your ticket to endless exploration. Embrace the freedom of mobile charging and travel as far as your heart desires.
Specifications: US
US
US
16A
32A
Model 2 Case C
Model 2 Case C
Type 1 (J1772)
Type 1 (J1772)
NEMA5-15P, NEMA6-20P & NEMA6-20R to 5-15P Adapter (optional)
NEMA14-50P & NEMA 14-50R to 5-15P Adapter, NEMA6-50P
Single Phase: up to 3.8kW/16A
Single Phase: up to 7.7kW/32A
8/10/13/16A
10/16/24/32A
120/240V Single Phase
120/240V Single Phase
CCID20
CCID20
NEMA TYPE4
NEMA TYPE4
-22°F to 122°F/-30°C to 50°C
-22°F to 122°F/-30°C to 50°C
-40°F to 176°F/-40°C to 80°C
-40°F to 176°F/-40°C to 80°C
50/60Hz
50/60Hz
<2000m/6561.67ft
<2000m/6561.67ft
Total 7.5M (Input 36.6 Inches/0.93M, controlbox 9.84 Inches/0.25M, Output 251.97 Inches/6.4M)
Total 7.5M (Input 36.6 Inches/0.93M, controlbox 9.84 Inches/0.25M, Output 251.97 Inches/6.4M)
9.45*3.94*2.56 inches/240*100*65mm (main box)
9.45*3.94*2.56 inches/240*100*65mm (main box)
Net 8.82 lbs/4KG, Gross 11 lbs/5KG
Net 8.82 lbs/4KG, Gross 11 lbs/5KG
11.81* 11.81*4.72 inches/300* 300*120mm
11.81* 11.81*4.72 inches/300* 300*120mm
UL2594/CSA C22.2#280
UL2594/CSA C22.2#280
ETL, FCC
ETL, FCC
Specifications: EU & GBT
EU
GBT
16A/32A
16A
Model 2 Case C
Model 2 Case C
Type 2 (IEC62196-2)
GB/T20234.2
EU, AU, UK, CEE
NEMA5-15P
Single Phase: up to 7.4kW/32A
Single Phase: up to 3.7kW/16A
8/10/13/16/24/32A
8/10/13/16A
230V±20% Single Phase
110/240V Single Phase
Type A+DC 6mA
CCID20
IP65 (control box)
NEMA TYPE4
-22°F to 122°F/-30°C to 50°C
-22°F to 122°F/-30°C to 50°C
-40°F to 176°F/-40°C to 80°C
-40°F to 176°F/-40°C to 80°C
50/60Hz
50/60Hz
<2000m/6561.67ft
<2000m/6561.67ft
Total 5M (Input 34.65 Inches/0.88M, controlbox 9.84 Inches/0.25M, Output 157.48 Inches/4M)
Total 5M (Input 34.65 Inches/0.88M, controlbox 9.84 Inches/0.25M, Output 157.48 Inches/4M)
9.45*3.94*2.56 inches/240*100*65mm (main box)
9.45*3.94*2.56 inches/240*100*65mm (main box)
Net 8.82 lbs/4KG, Gross 11 lbs/5KG
Net 8.82 lbs/4KG, Gross 11 lbs/5KG
11.81* 11.81*4.72 inches/300* 300*120mm
11.81* 11.81*4.72 inches/300* 300*120mm
EN62752:2016, IEC 62196-2
/
TUV, CE
/
FAQs
Can I charge an EV that hasn't been matched to the PulseQ Portable?
The device can charge any EV that has a J1772/IEC62196-2/GB/T20234.2 charging interface.
Can the input plug cable be longer?
Yes, the cable can be lengthened from 0.3m to 0.8m for an additional fee.
Could I convert the existing plug to another NEMA plug?
Yes. You can do this by using an adapter.
Can the warranty be extended?
No.
Can I install the charger on an iron pillar? Does the charger come with a supporting bracket?
Yes, you can install the charger on an iron pillar. The supporting bracket is optional, but TOPDON can provide it.
What is the MCB requirement, and can this charging cable be increased?
An MCB with a 20/40A overcurrent protection is required. The charging cable is 7.5m (24.6 ft.) and cannot be extended.
What is the minimum and maximum current supported by the device?
The minimum current supported is 8A, while the maximum current is 32A.
Could I change the charging power?
Yes.
What are the differences between this product and those from competitors?
* The PulseQ AC Portable has various current options that can accommodate different indoor / outdoor power capacity scenarios.
* The charger features a scheduled charging mode that allows users to set custom charging periods based on specific electricity fees.
