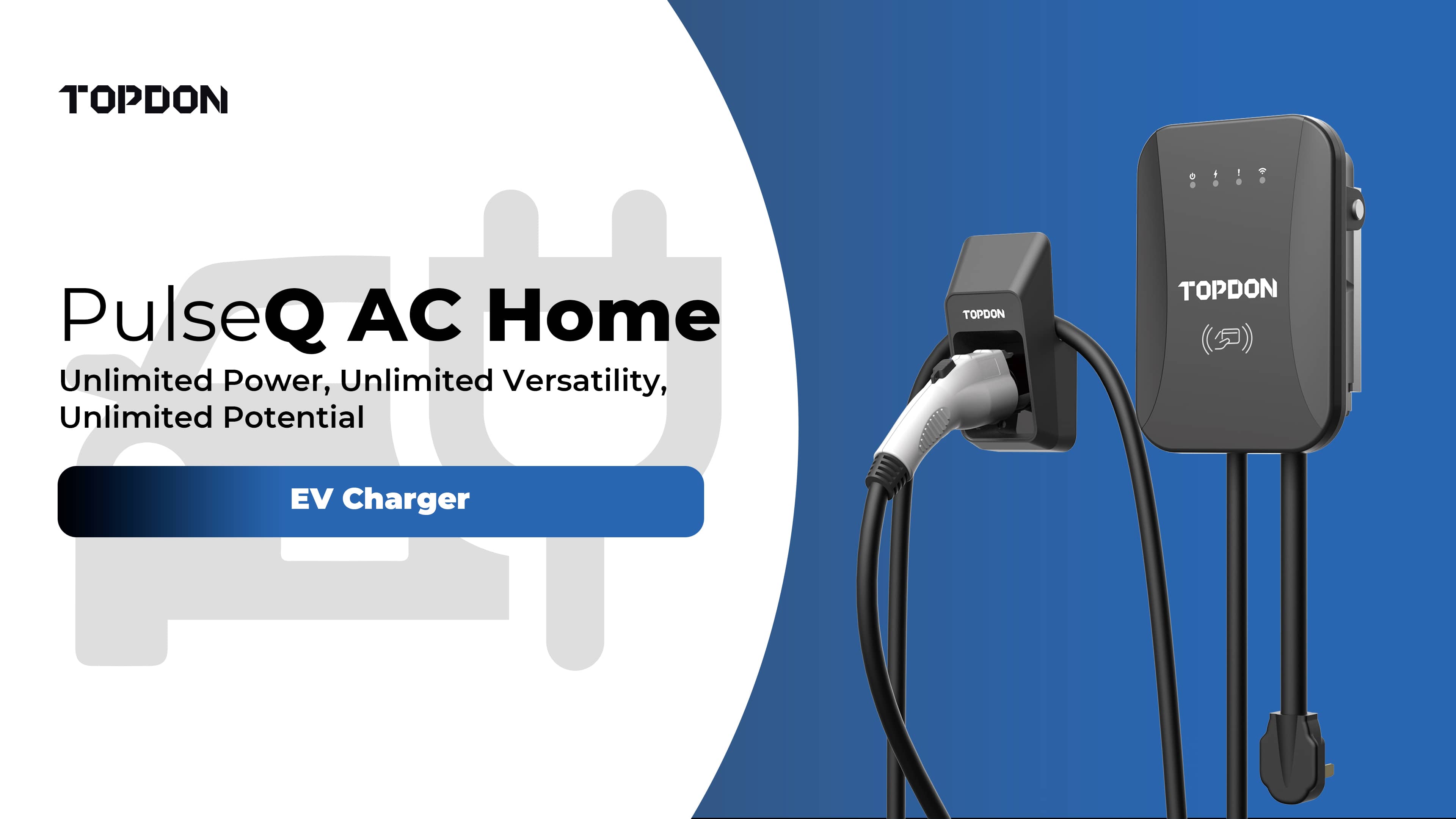

PulseQ AC Home
Unlimited Power, Unlimited Versatility, Unlimited Potential

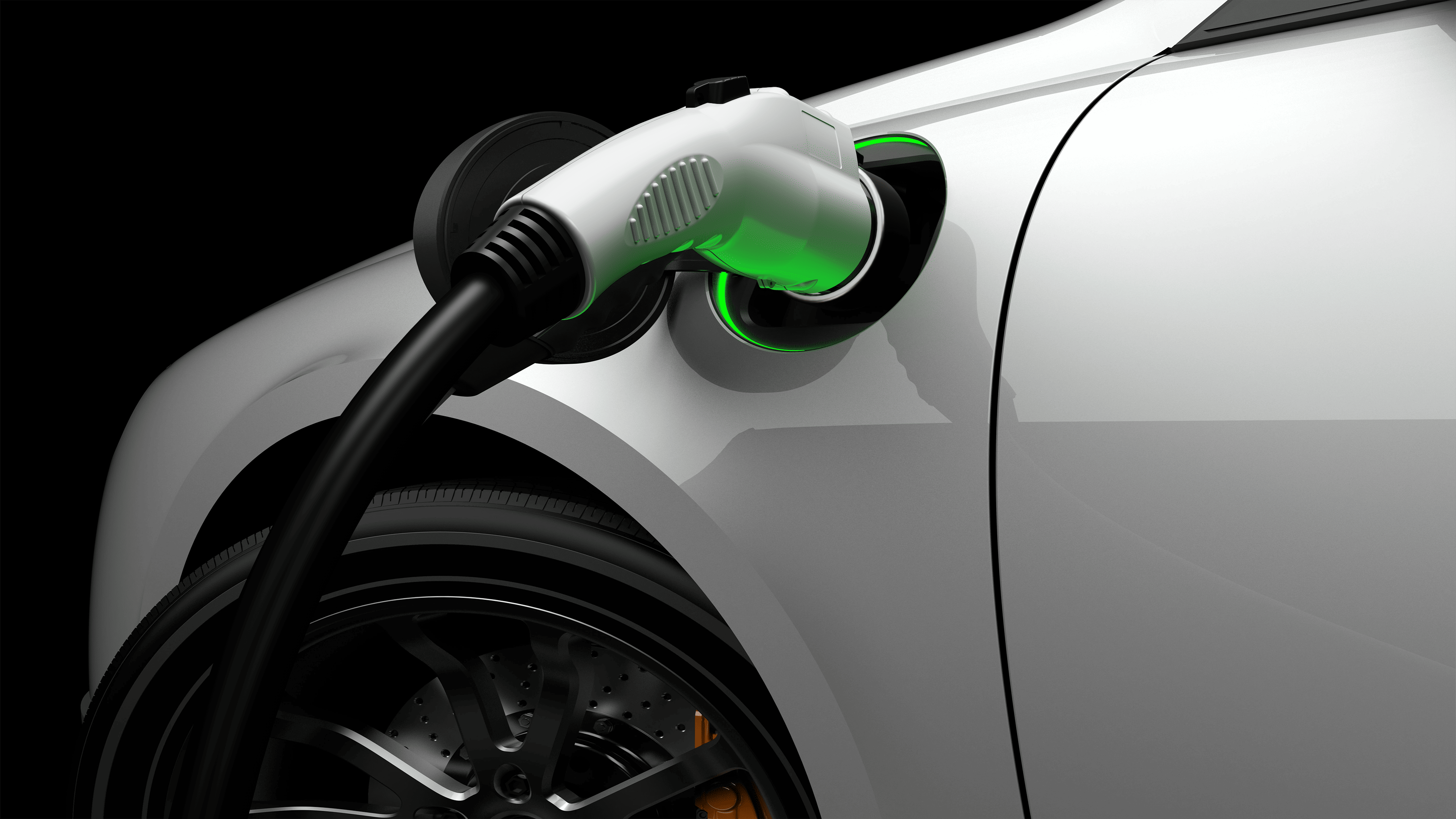

Expanded Compatibility With SAE J1772 (TYPE1) Connector
Using a standard J1772 connector, the PulseQ allows for wide compatibility with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles. Coverage includes Tesla (adapter needed), Ford, GM, Volkswagen, Nissan, Audi, and more; perfect for users that own more than one electric vehicle.
The EU version of the PulseQ is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating most brand barriers to electric vehicle owners.
Expanded Compatibility With SAE J1772 (TYPE1) Connector
Using a standard J1772 connector, the PulseQ allows for wide compatibility with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles. Coverage includes Tesla (adapter needed), Ford, GM, Volkswagen, Nissan, Audi, and more; perfect for users that own more than one electric vehicle.
The EU version of the PulseQ is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating most brand barriers to electric vehicle owners.
Work Easier With The PulseQ's App
Use your smartphone to connect the PulseQ’s Wi-Fi signal to your home network. The app allows users to connect multiple chargers and perform charging jobs remotely. With the permission of the administrator (the first register), the PulseQ AC Home EV Charger can be operated by more than one person simultaneously.

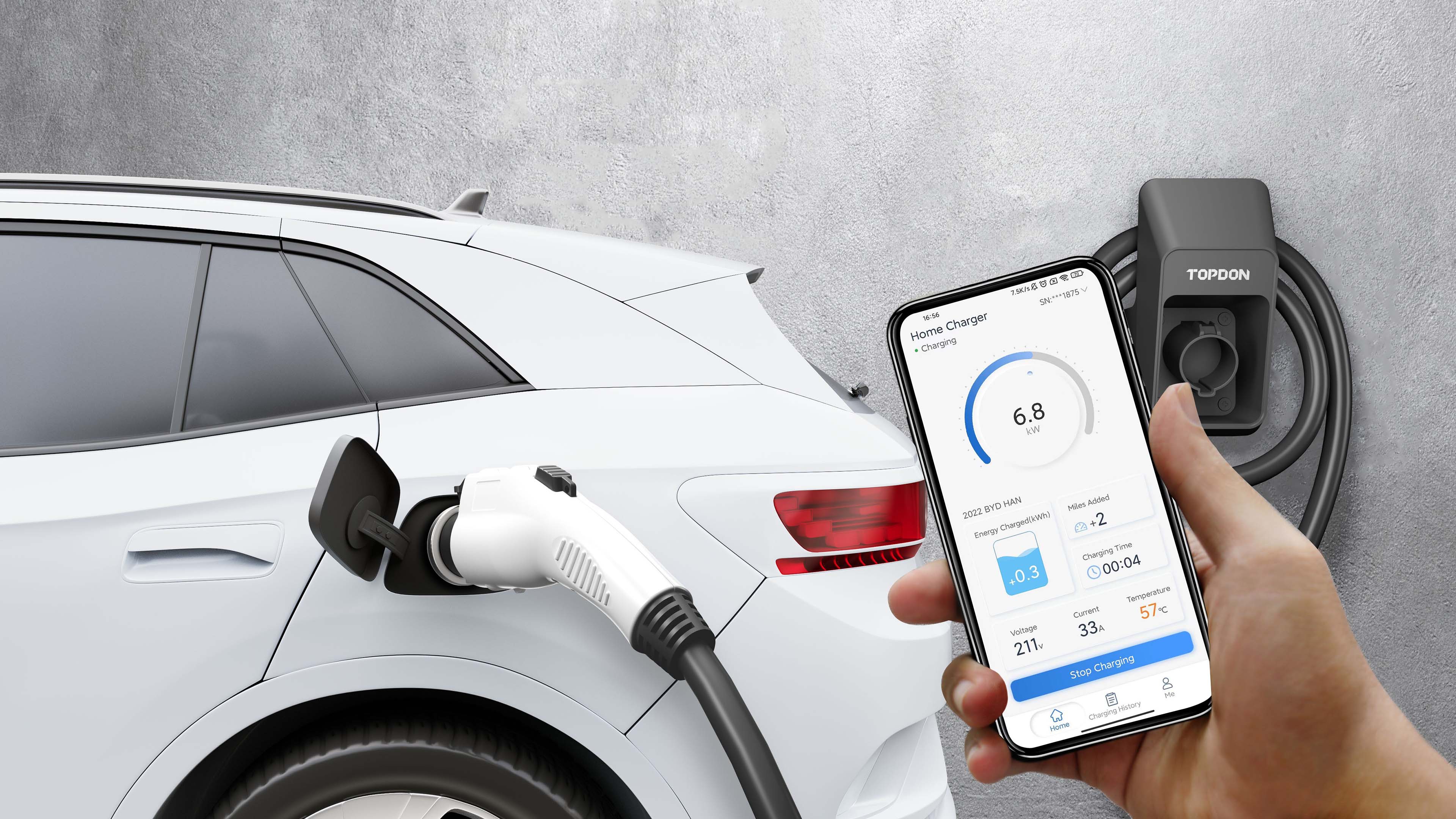

Plug-And-Play With App Control
The US PulseQ EV Charger's online mode features 2 charging modes: Plug-and-Play and App Control. App Control mode allows you to set charging times, adjust charging current, and track all useful data about your car’s charging status with your smartphone. In Plug-and-Play mode, the charging begins as you slot the charger into the vehicle, and you can stop charging by pressing the button on the side of PulseQ to pull out the charger. The smart design will automatically switch into Plug-and-Play mode and continue to charge your vehicles if the App loses connection with the charger.
Note: The PulseQ of the EU version and US dealer version has three charging modes: App Control, Plug-and-Play, and RFID mode, and they cannot switch automatically.

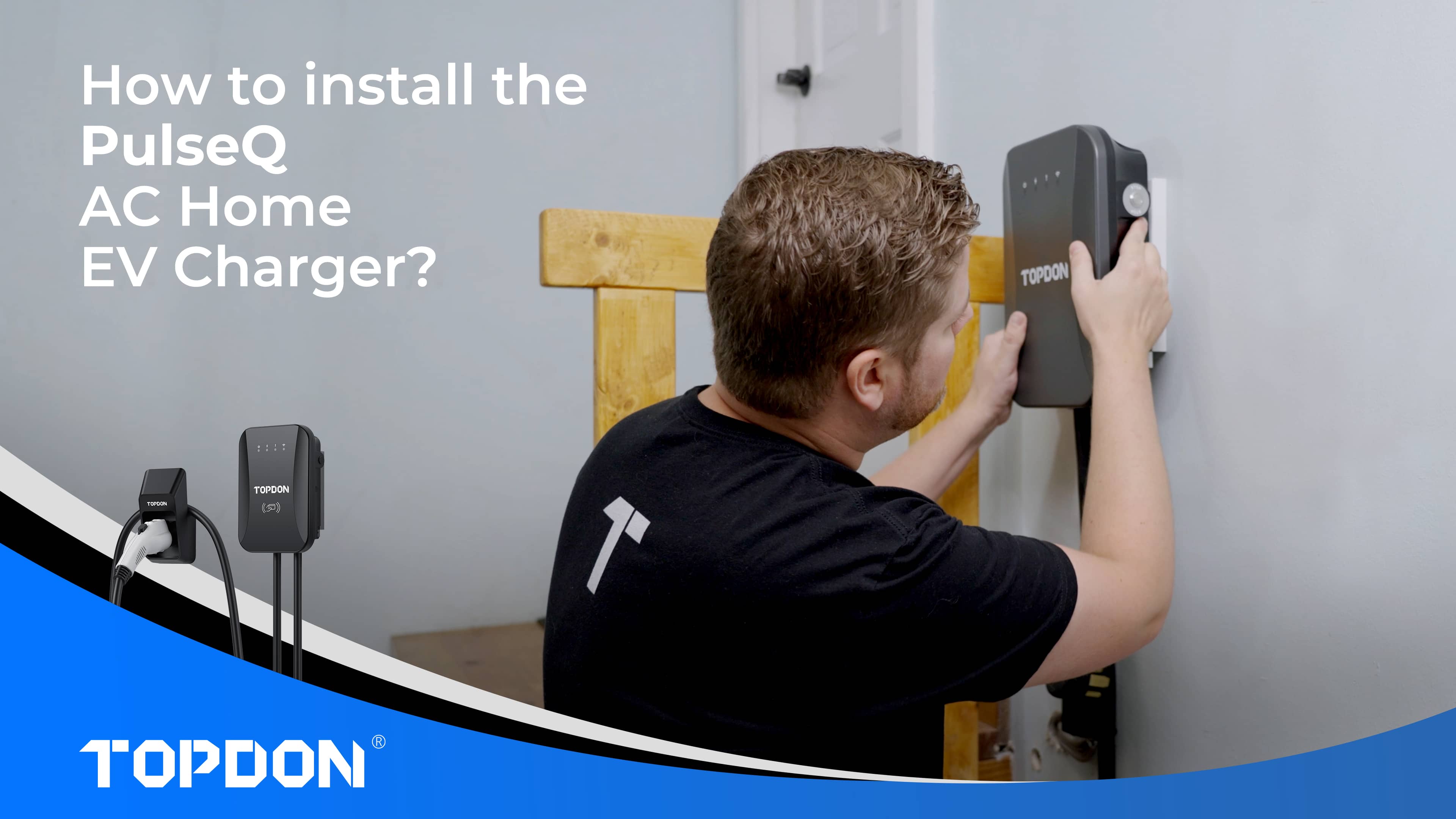

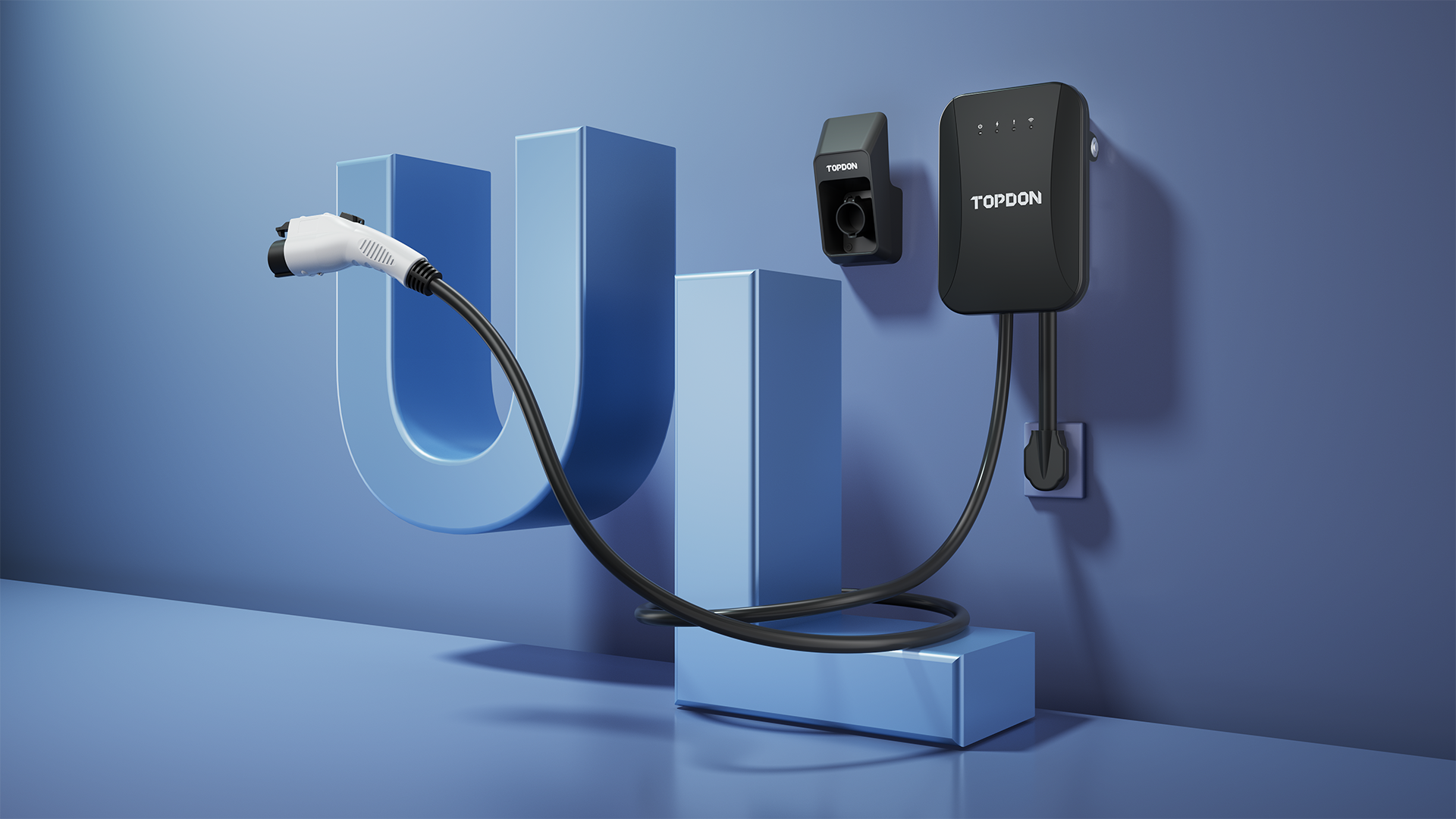

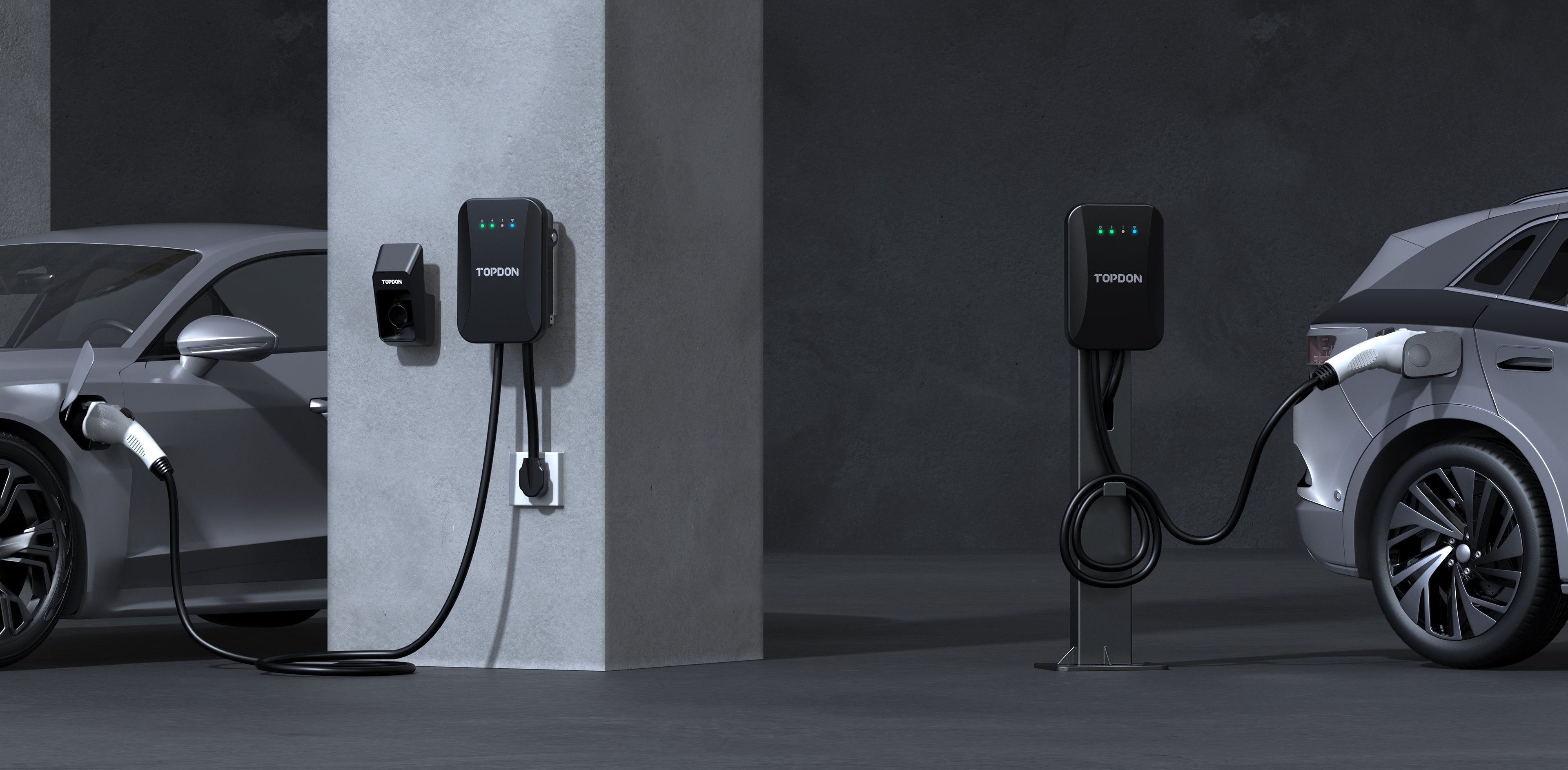

Compact Design & Easy Installation

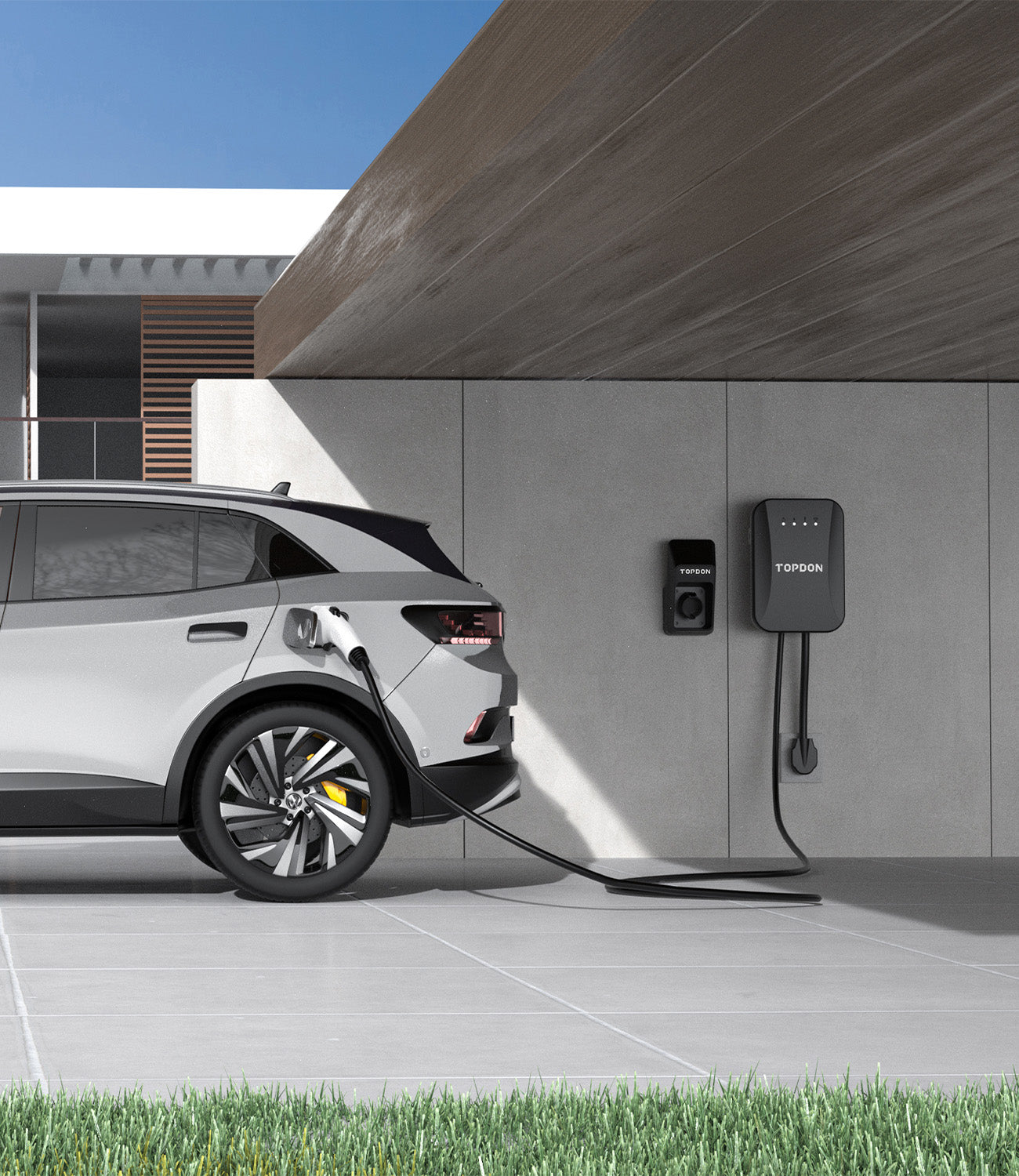

The compact design and easy installation make the PulseQ a great option for those who want to install an electric vehicle charging station at home. The PulseQ EV charger can be easily mounted on a wall or a pole.
If a NEMA14-50R outlet is installed and Wi-Fi connected, the charging station can be easily installed in 15 minutes.
12.2×8.7×3.7
inches
17.6
lb
Certified AC EV Charger
US Version
The U.S spec PulseQ is a UL listed EV charger; meeting national safety standards with respect to design, performance, and installation. Equipped with a NEMA 14-50 plug, this Level 2 240V home charger can work more efficiently than the level 1 charger as it will provide faster charging.

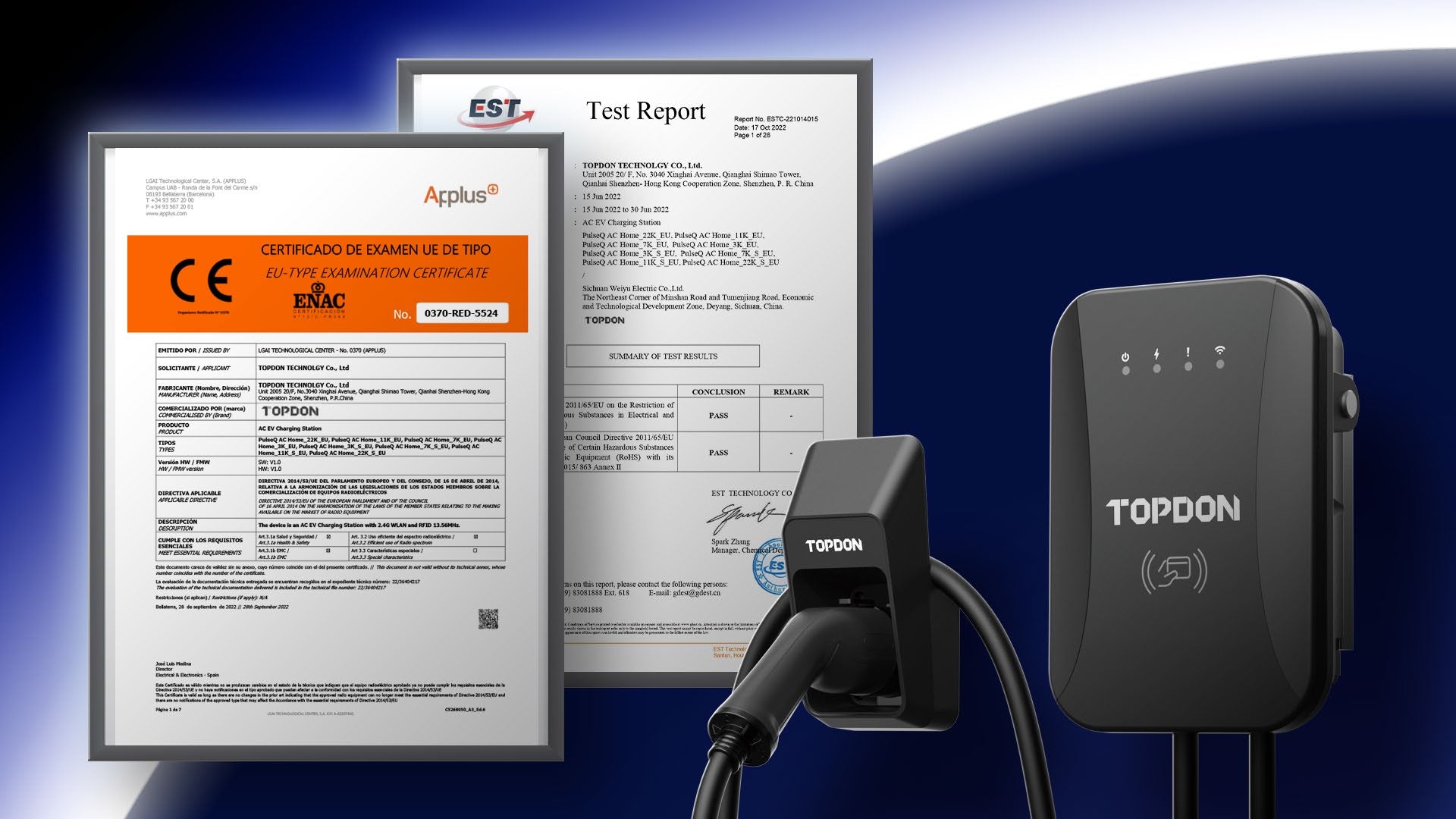

EU Version
The EU spec PulseQ charger is safe and durable with CE, LVD, RED, and RoHS certification, and has passed REACH testing.
The U.S spec PulseQ is a UL listed EV charger; meeting national safety standards with respect to design, performance, and installation. Equipped with a NEMA 14-50 plug, this Level 2 240V home charger can work more efficiently than the level 1 charger as it will provide faster charging.
The EU spec PulseQ charger is safe and durable with CE, LVD, RED, and RoHS certification, and has passed REACH testing.

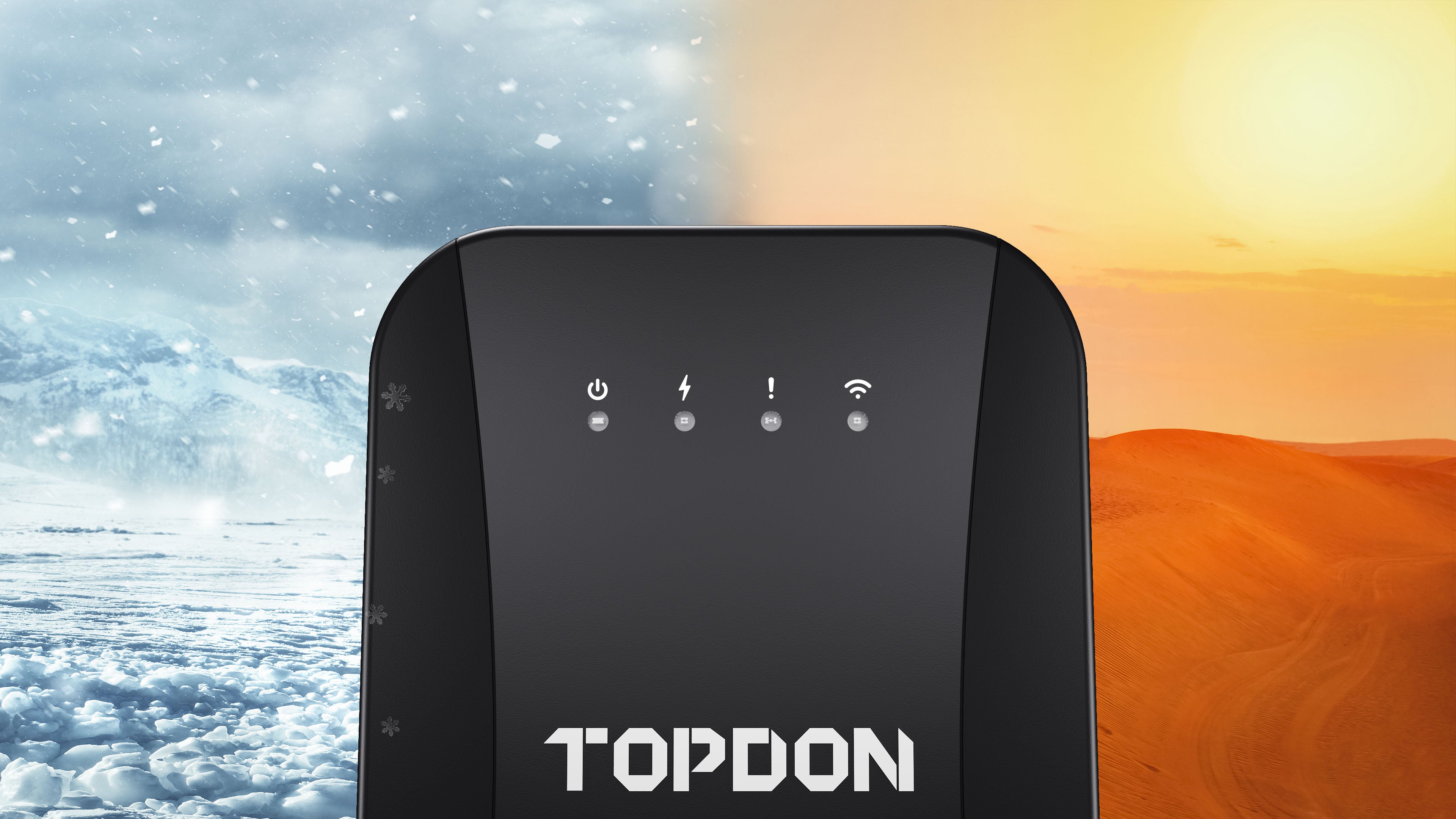

Built To Last
Made with flame-retardant materials, this charging unit has the ability to operate in environments of -22°F to 131°F (-30℃ to 55℃), and in 95% humidity.
Safety Above Everything
Under Voltage Protection
Over Voltage Protection
Overload Protection
Over-Temp Protection
Short Circuit Protection
Ground Protection
Earth Leakage Protection
Lightning Protection
Rugged Charging Cable
The PulseQ EV Charger comes with a rugged charging cable made of PVC and copper, which can accommodate up to 40A. This 16.4 ft cable allows maximum flexibility in use (25ft extendable option). The charger can be saved in the socket when not in use, and you can coil the charging cable and hang it over the socket for storage.
Great Value For The Money

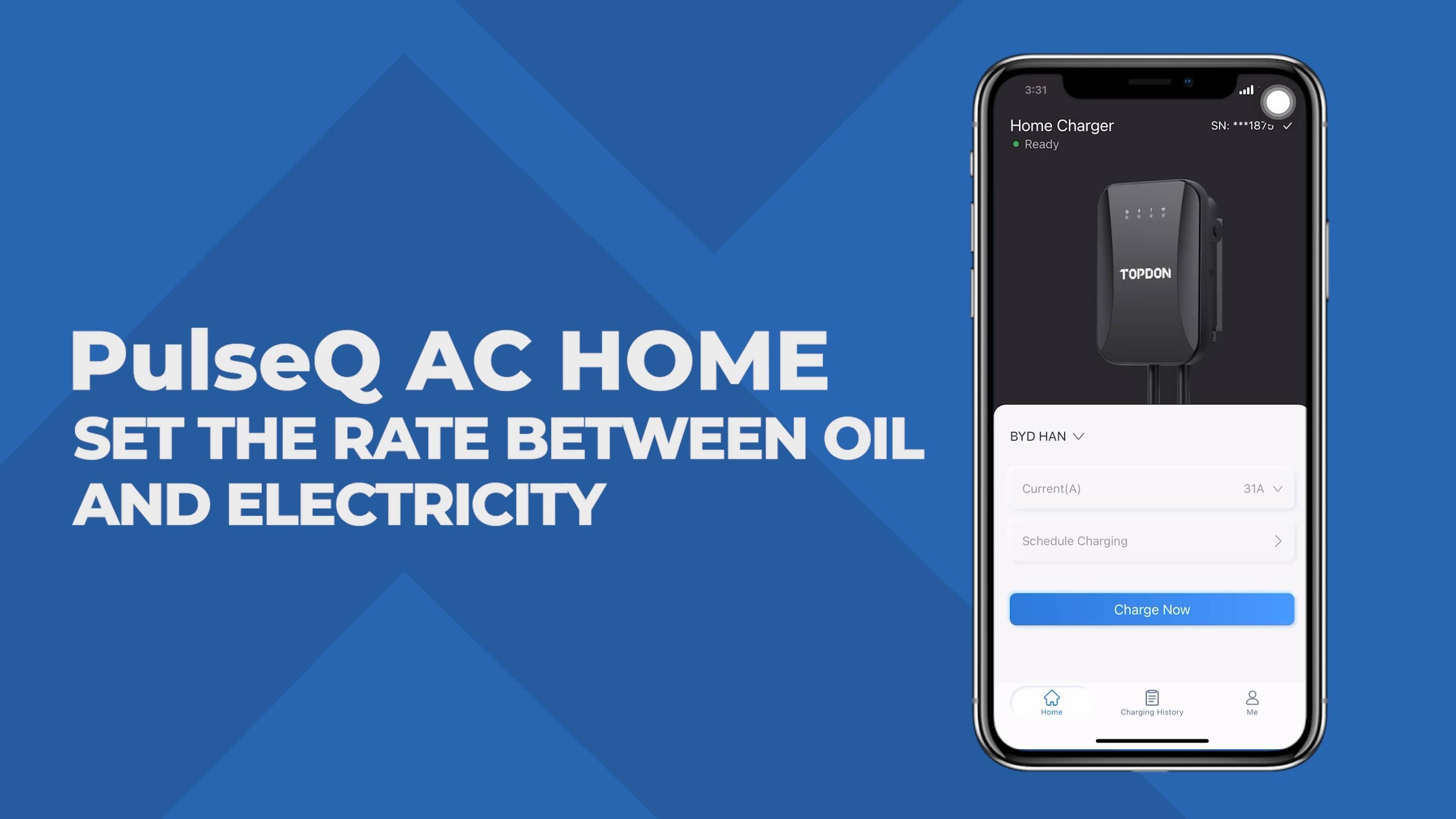

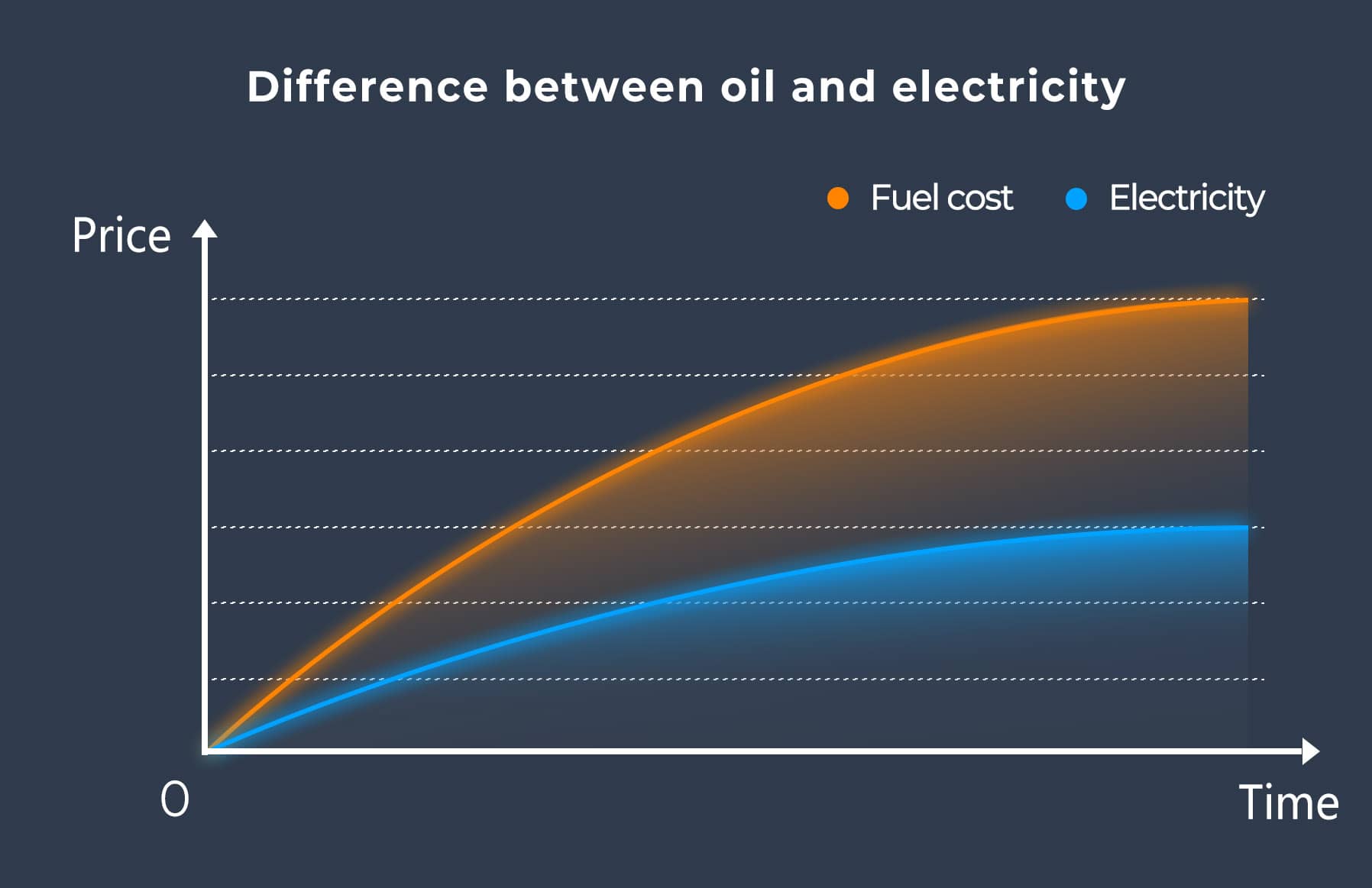

The PulseQ App allows your vehicles to be charged during off-peak periods by allowing you to set charging times, saving money on electricity bills. You can also check the price difference between oil and electricity on the App. Adjustable current range from 6 to 40A (1A Precision) and SAE J1772 (TYPE1) connector enables this charger to power most electric vehicles on the road, making it an excellent investment.
Specifications
US VERSION
EU VERSION
GBT VERSION
SAE J1772 Type 1
IEC 62196-2 Type 2
GB/T20234.2 Type 2
UL, FCC
CE, LVD, RED, RoHS,
REACH
/
ONLINE VERSION: App-Controlled/Plug-and Play
DEALER VERSION: App-Controlled/Plug-and-Play/RFID mode
App-Controlled/Plug-and-Play/RFID mode
App-Controlled/Plug-and-Play/RFID mode
NEMA14-50 plug
/
/
9.6 KW
7/11/22 KW
7/11/22 KW
AC 208-240V
400VAC/230VAC
400VAC/230VAC
6A-40A (Adjustable)
32/16A (6-32A Adjustable)
32/16A (6-32A Adjustable)
310 x 220 x 95 mm
(12.2 x 8.66 x 3.74 in.)
310 x 215 x 95 mm
(12.2 x 8.46 x 3.74 in.)
310 x 215 x 95 mm
(12.2 x 8.46 x 3.74 in.)

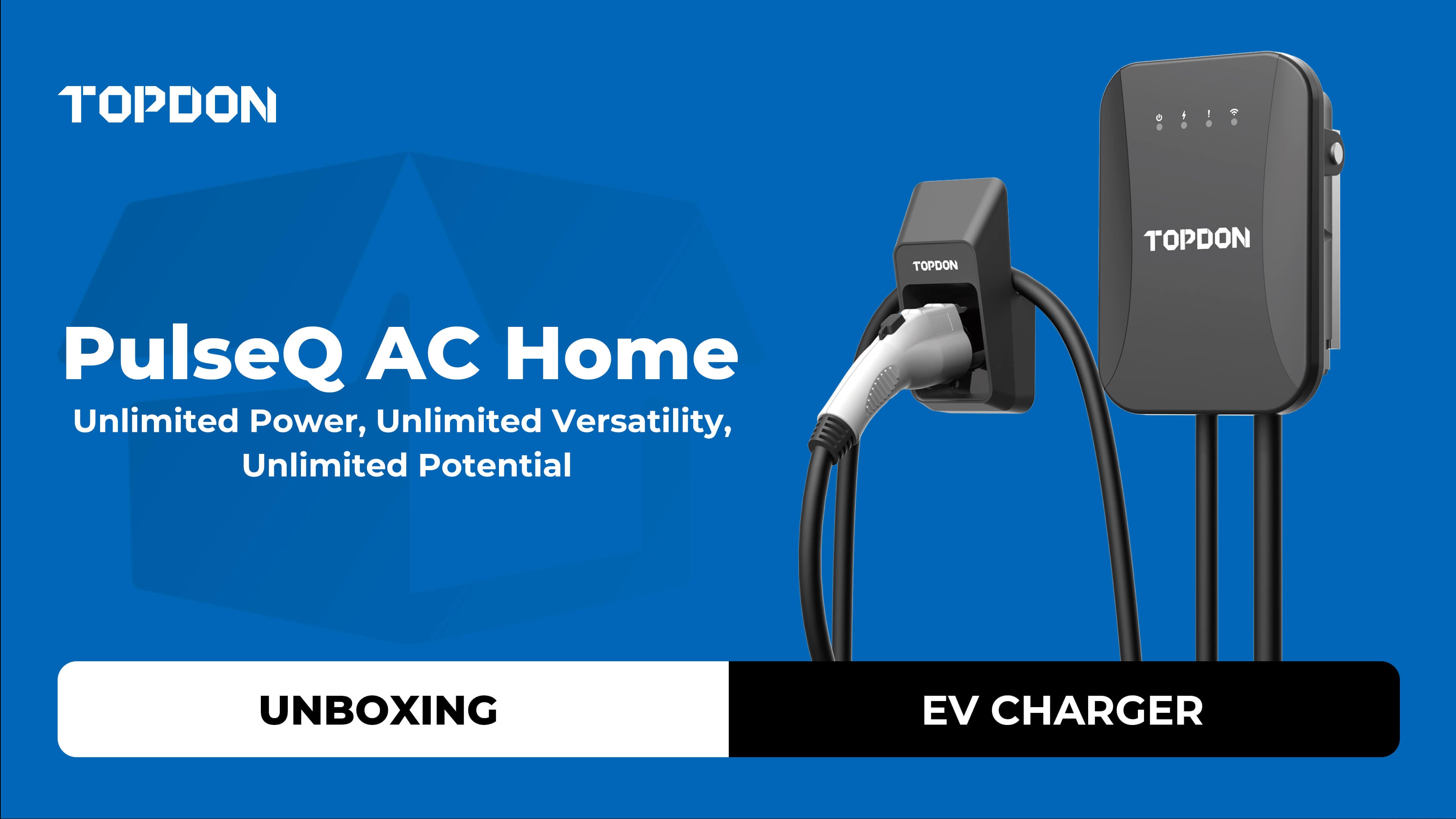

Videos
FAQs
Can you program the charger to charge at specific times and to specific levels?
Yes. We can achieve charging within specific preselected time ranges. The functionality is not fully customizable at this time.
Does it notify you when your car is fully charged?
Yes. When the PulseQ finishes a charge, the app will notify you via a notification.
Can I charge by just plugging the tool into my car, or do I need the app to charge?
The app is required to set up the charger and set a maximum rate of charge. Once set up is complete, you have access to plug and charge, or set up a customized charge through the app.
Can you choose to charge at 110V or 240V? (US Online Version)
The voltage of this EV charger is 208/240V and the maximum current is 40A. The current is adjustable, but the voltage cannot be adjusted.
Is the Wi-Fi 5 GHz capable, or only 2.4 GHz capable?
It is only compatible with 2.4 GHz frequencies due to its longer signal distance.
Can I turn the charger on and off remotely?
Yes. The mobile app allows you to turn charging on and off, schedule charging, or exclude times for charging. It also provides you with other information about usage.
How many miles per charging hour? (US Online Version)
It depends on the amperage of the line going to the charger and the capabilities of your EV. Using a hardwired application on a 50 amp circuit using the NEMA 14-50 plug will give you about 28 miles of range per hour. You can also set the app to show added mileage.
Can I directly wire this charger to power, or does it have to be plugged in through an outlet?
The EV charger can be connected to the power supply through the plug or be wired directly to power. The PulseQ should always be installed by a licensed professional.
Does this charger have to be installed inside or can it be installed outside as well? (US Online Version)
This EV charger has a NEMA 4 protection rating and can be installed outdoors without being eroded by rain. However, please note that a weatherproof cover should be installed between the NEMA 14-50 plug and socket.
Will this unit work on 120V/60HZ? (US Online Version)
This unit only supports 240V.
How may conductors will I need to run the unit? (US Online Version)
240 volt requires two conductors. Wire size varies depending on breaker capacity.
Will this work on a 14-30 NEMA plug? (US Online Version)
No. This comes with a 14-50 plug which is slightly different. You can however rewire the unit to use any 240V standard following the hard wire instructions. Or use an adaptor. It is recommended to have all this work done by a qualified electrician.
All of the LED lights are not on. Why is this?
Please check the following:
a): Whether the power supply and power distribution are normal;
b): Whether the branch breaker is tripped. Be sure to close the breaker after troubleshooting;
c): Whether the cable connection is strong. If the cable comes off they should be properly connected.
Why does the fault indicator keep twinkling?
The charger is automatically protected in the event of the fault. Click here to check the fault information and handling methods.
