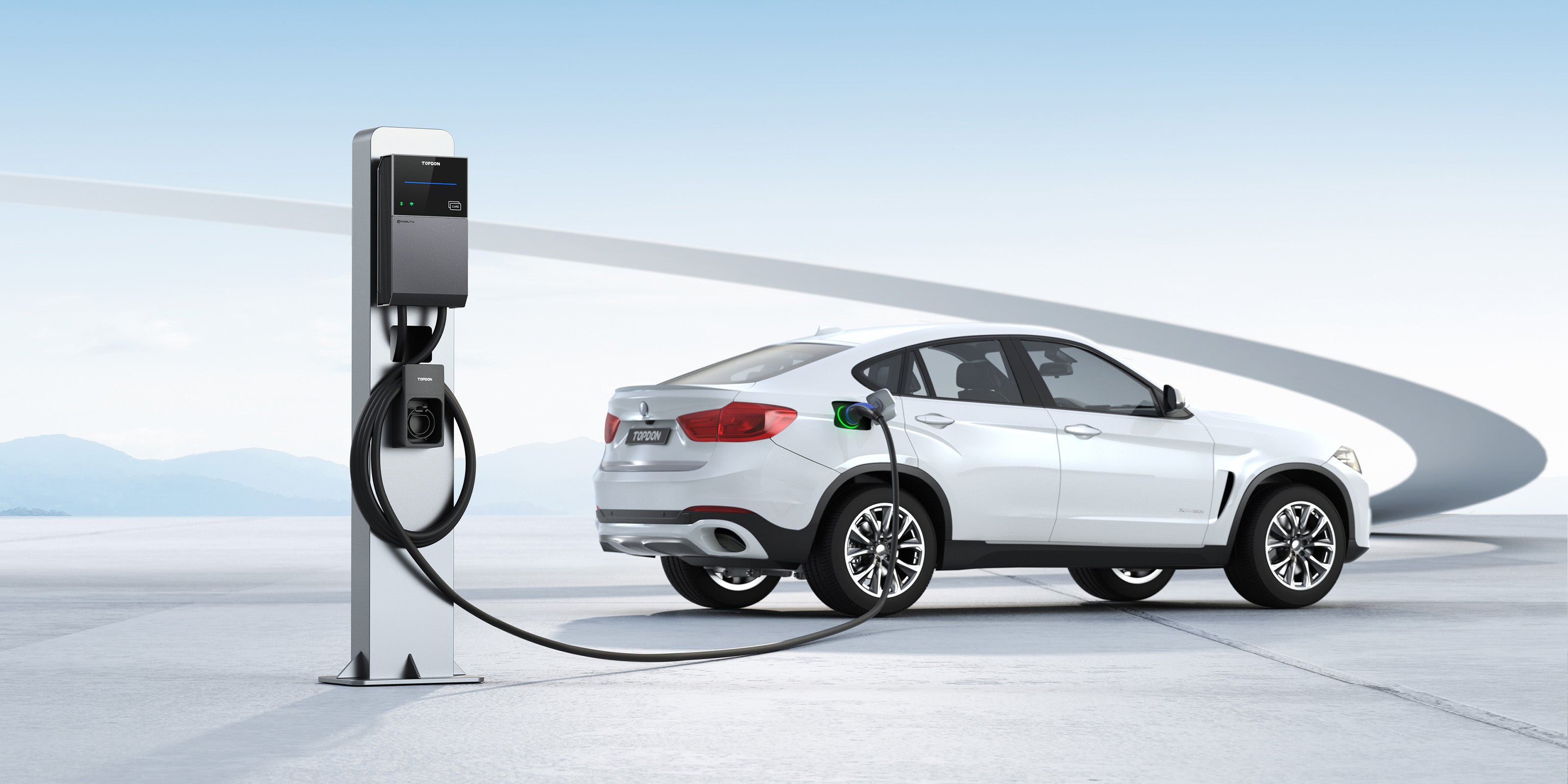

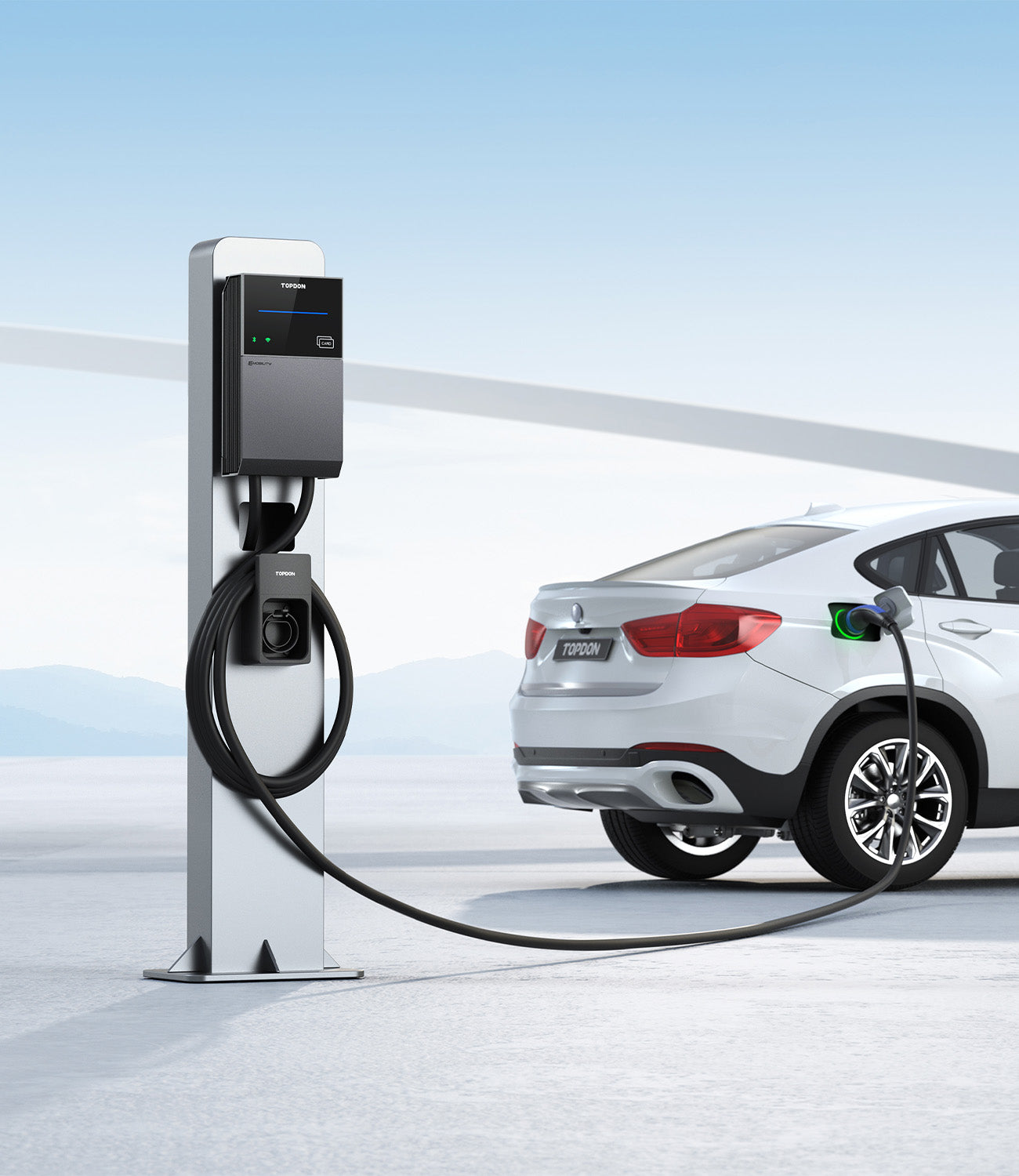

PulseQ AC Lite
Unlimited Power, Unlimited Versatility, Unlimited Potential
TOPDON's PulseQ AC Lite reimagines EV charging with convenience in mind. This AC charging station is highly compatible with electric vehicles with a Type2 interface. Capable of single-phase or three-phase charging, it can deliver a maximum power of up to 22KW, making it the ultimate choice for rapid charging. The PulseQ AC Lite features 3 charging modes: Plug and Play, App Control, and RFID. Furthermore, the smart app allows for remote charging control. You can schedule charging times and monitor charging status, including estimated time, cost, and charging capacity, all from the convenience of your smartphone.
With an IP65 rate and built-in type A + DC6mA leakage protection, this charger can be installed both indoors and outdoors, guaranteeing safety and peace of mind. Its compact design also saves valuable space. The charger even offers customization options. Upload a picture and create a personalized charging experience.

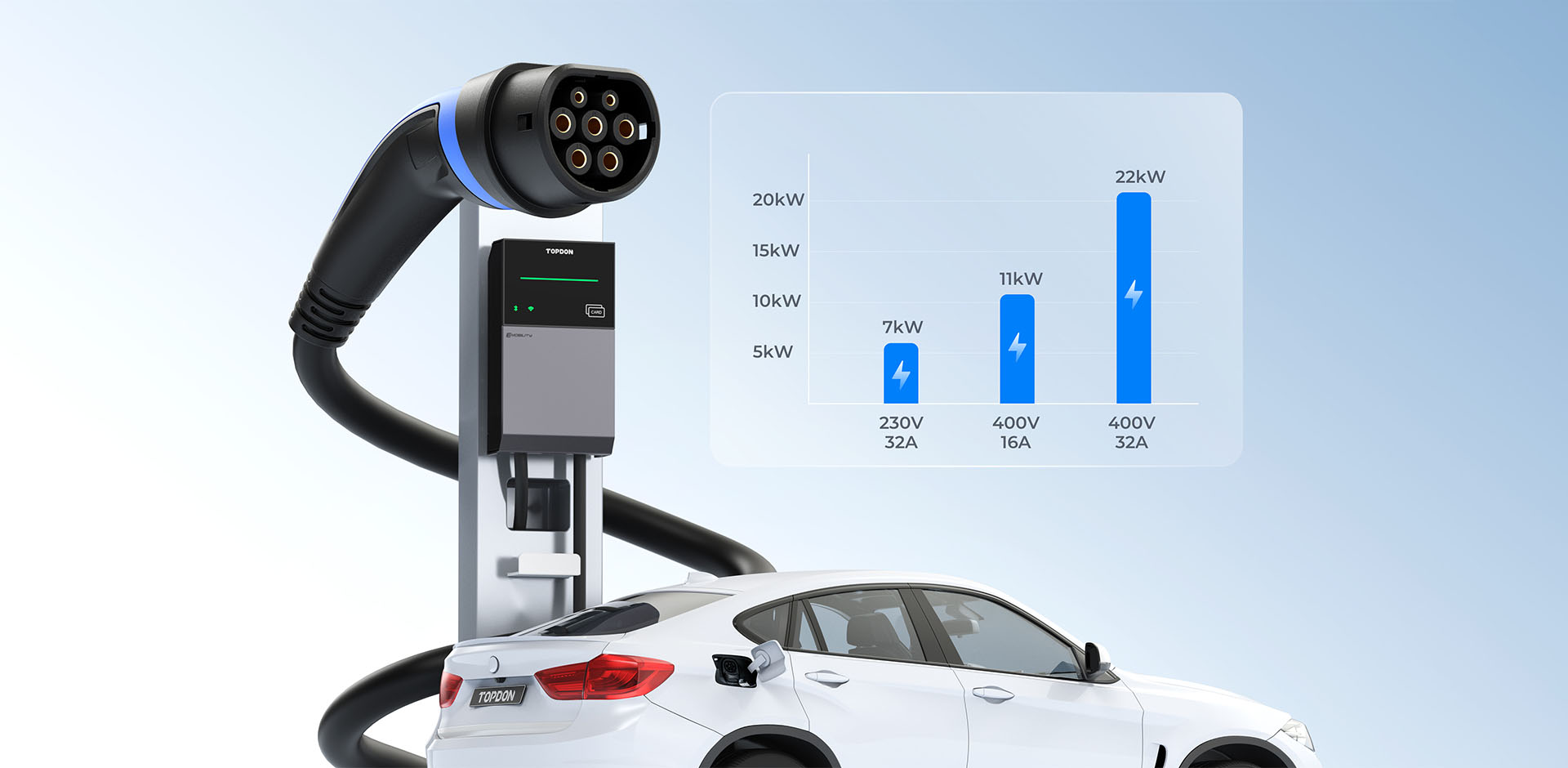

EV Charging Master For Type 2 Connector
TOPDON PulseQ AC Lite, the EV Charging Master for Type 2 Connector, is specifically designed to cater to European standard electric vehicles with IEC 62196-2 (Type 2) interface. With the flexibility of choosing between single-phase (7kW) or three-phase (11kW/22kW) options, this advanced AC charging solution meets a wide range of charging requirements.
Smarter EV Charging With The Smart App
Pair the PulseQ with your smartphone to start or pause the charging progress whenever and wherever. Using the intuitive app, you can schedule charging times during off-peak session, check estimated distance and cost, view charging history, and get notifications when fully charged.
Features Plug-And-Play, App Control, & RFID
The PulseQ AC Lite supports 3 charging modes: Plug and Play, App Control, and RFID. Say goodbye to cumbersome procedures with the plug-and-play mode. With the RFID card mode, you have full control over your charging station, eliminating any concerns about unauthorized usage. The app-controlled charging mode offers the advantages of convenience, real-time monitoring, customized planning, and data analysis. Easily switch between modes to find the perfect charging solution for your electric vehicle.
Voice-Activated Charging
TOPDON PulseQ AC Lite features voice-activated charging, seamlessly integrating the PulseQ AC Lite into your smart home via Amazon Alexa. Remotely initiate or halt charging session and effortlessly monitor charging time and capacity. Elevate your EV charging setup with the PulseQ AC Lite and enjoy a new level of convenience and control.
Tailored Charging Schedules For Your Convenience
With the mobile app, users can create personalized charging schedules based on their specific needs and preferences: Set a fixed daily charging routine or set various charging times for each day. You can set specific charging periods to take advantage of off-peak electricity rates, optimizing energy consumption and reducing charging costs.

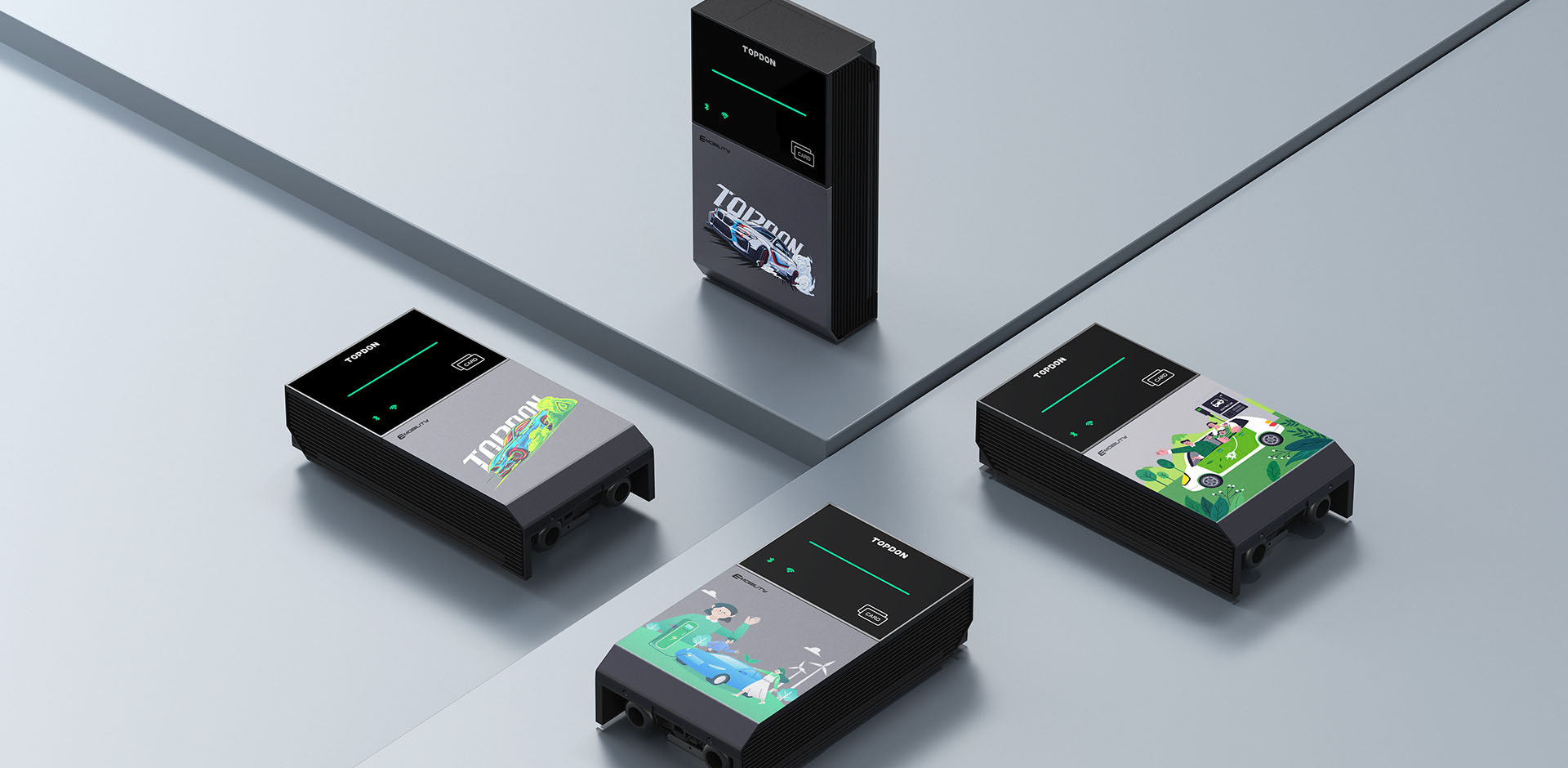

Customize Your Own EV Charger
With the PulseQ AC Lite, you have the power to make it uniquely yours. Our customizable design allows you to choose a personalized pattern for the front panel. Select from TOPDON's stunning color options or even upload your own favorite design. Get started on customizing your very own PulseQ AC Lite today.

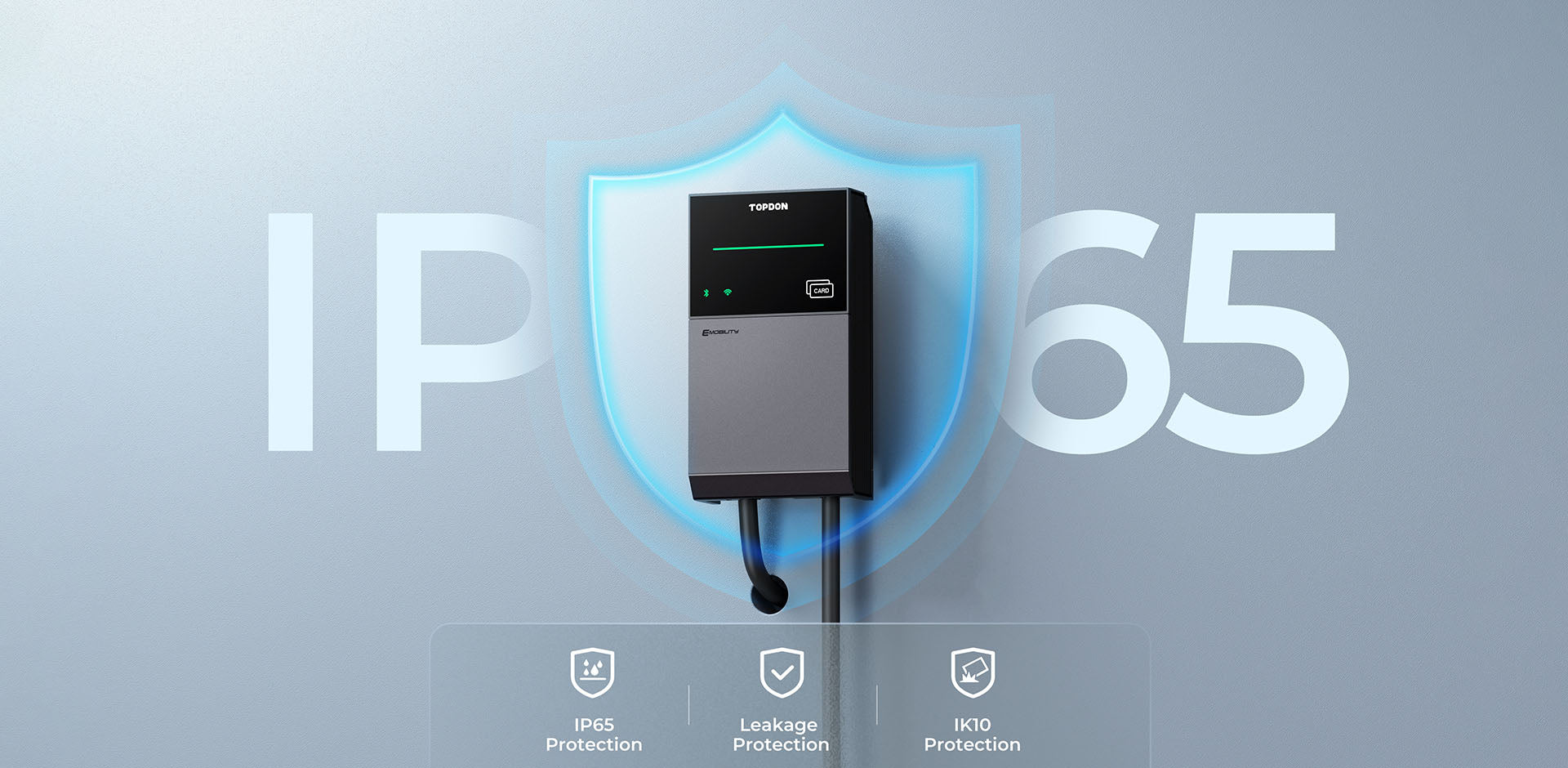

Safety You Can Count On
Encased in robust and durable housing with IP65 and IK10 protection ratings, this charger is designed to withstand dust, water, and tough outdoor conditions, providing peace of mind for both indoor and outdoor use. With the built-in Type A + DC6mA leakage protection, your charging process is safeguarded against potential current hazards.
Durable And Reliable Design
The charging station body is crafted with a robust combination of PC and aluminum alloy, ensuring long-lasting durability. The charging cable is constructed with a sturdy blend of PC and TPU materials. With an operational temperature range of –22°F to 122°F (-30°C to 50°C), our charging infrastructure is built to withstand extreme conditions while delivering consistent performance.

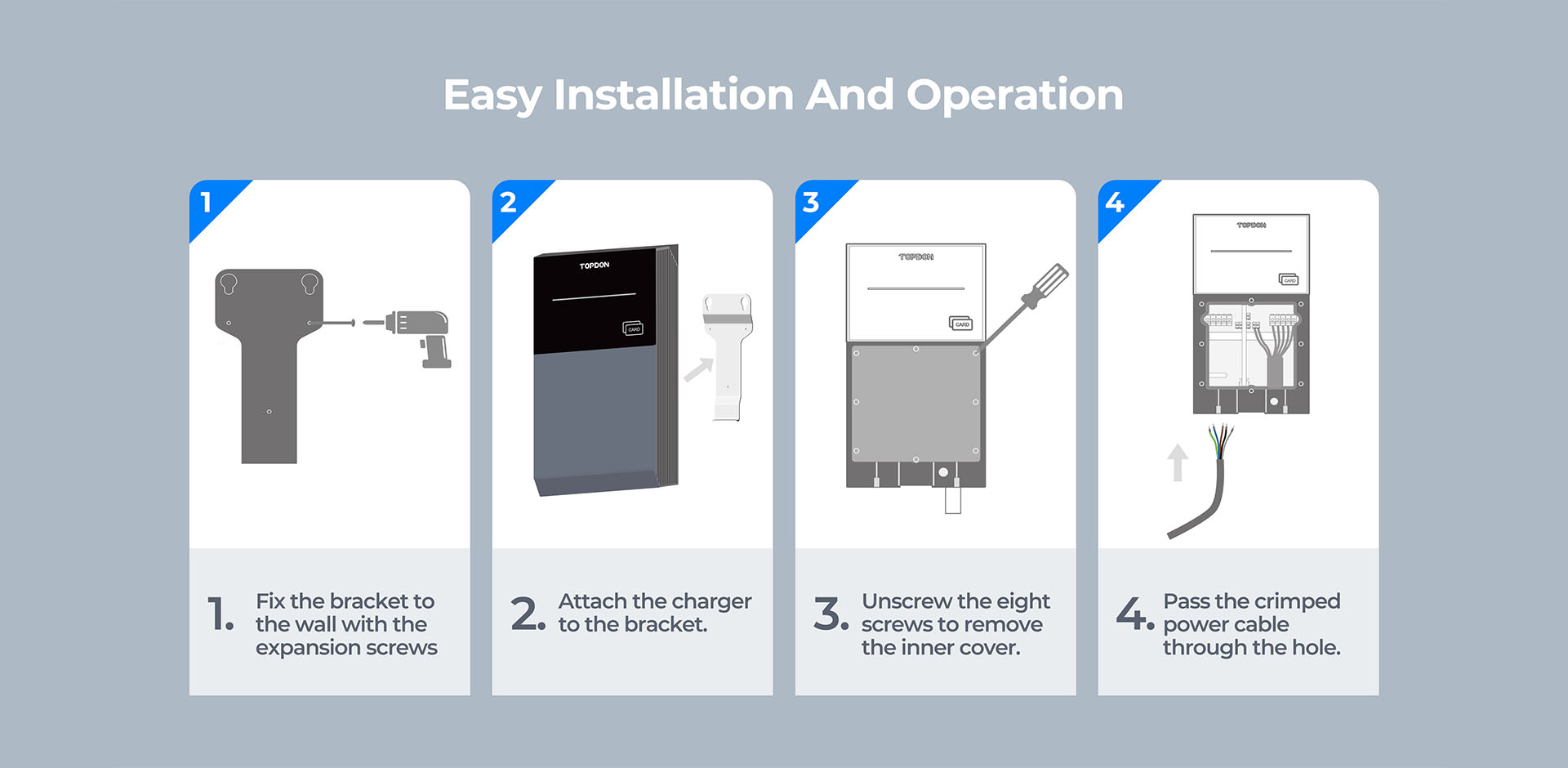

Easy Installation And Operation
No need to dismantle the entire charging station for wiring. The innovative design of the PulseQ AC Lite gives your professional electrician easy and efficient connectivity, disconnection, and internal access.
Be sure to have this installed by a licensed professional.
Specifications
PulseQ AC Home
(EU Version)
PulseQ AC Lite
PulseQ AC Pro
IEC 62196-2 Type-2
IEC 62196-2 Type-2
IEC 62196-2 Type 2
CE-NB, ROHS, REACH
TUV, CE, CB, ROHS
TUV, CE, CB, ROHS
Plug-and-Play/App-Controlled/RFID
Plug-and-Play/App-Controlled/RFID
Plug-and-Play/App-Controlled/RFID
7kW/11kW/22kW
7kW/11kW/22kW
7kW/11kW/22kW
230/400V
230/400V
230/400V
32A/16A
32A/16A
32A/16A
√
√
√
IP65, IK10
IP65, IK10
IP54, IK10
310x215x95mm
(12.2 x 8.5 x 3.74 in.)
340×189×97mm
(13.4 x 7.44 x 3.82 in.)
340×189×97mm
(13.4 x 7.44 x 3.82 in.)
Videos
FAQs
Which model should I buy?
Choose based on your needs:
1) PulseQ AC Lite_7K: Single-phase power, max 32A, 230Vac.
2) PulseQ AC Lite_11K: Three-phase power: 16A, 400Vac / Single-phase: 16A, 230Vac.
3) PulseQ AC Lite_22K: Three-phase power: 32A, 400Vac / Single-phase: 32A, 230Vac.
4) Choose 22kW if unsure for best compatibility.
Does the PulseQ Lite include an input cable?
No. You must acquire an input cable that is suitable for your setup.
What are the minimum and maximum currents supported?
Minimum Current: 6A
Maximum Current: 32A
How can the charging station be connected to the network?
Connect to WiFi or ethernet.
WiFi: Bind via the PulseQ AC APP, then input your home WiFi credentials.
Ethernet: Directly insert an Ethernet cable into the charging station's base.
How can my phone be paired with the charging station?
Download the PulseQ AC APP, enable Bluetooth, and add the device upon detecting its Bluetooth signal.
How do I use voice control?
To utilize an Amazon Alexa smart speaker, link your PulseQ AC account with Alexa's account, and command the charging station through voice instructions.
Why does the fault indicator keep twinkling?
The charger is automatically protected in the event of the fault.
Click here to check the fault information and handling methods.
